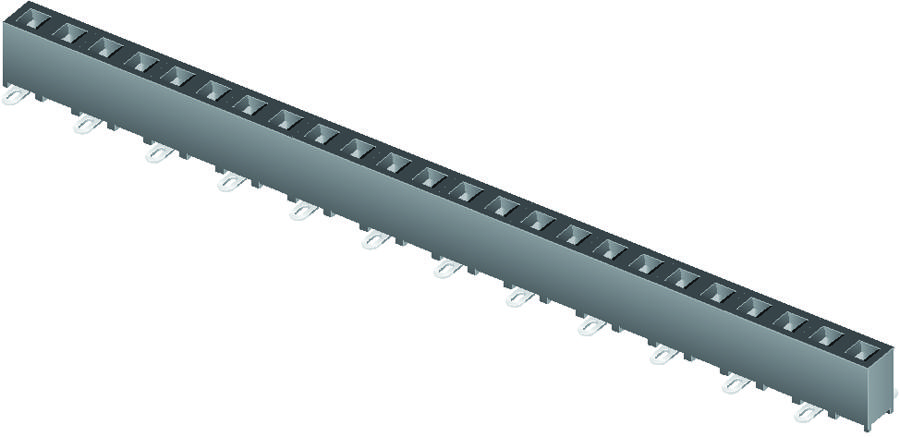

SAMTEC SMM13202SSK Edge Card Connector
The SMM13202SSK is a high-reliability edge card connector designed for PCB applications, featuring black liquid crystal polymer insulators and BeCu contacts. It supports current ratings up to 3.2 A per pin with optional gold or tin plating over nickel. Operating within -55°C to +125°C, it is RoHS compliant and lead-free, suitable for demanding electronic assemblies. The connector supports up to 100 insertion cycles, with an insertion depth of approximately 3.05 mm (0.120 inches). It ensures secure connections with optional locking clips and is ideal for mission-critical electronics requiring robust performance and reliable signal transmission.
SAMTEC SMM13202SSK Edge Card Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 μ" Ni
- Current Rating: 3.2 A per pin
- Voltage Rating: 350 VAC
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: approximately 3.05 mm (0.120 inches)
- Max Cycles: 100 with 10 μ" (0.25 μm) Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Maximum Length: 3.25 mm, about 0.128 inches
- Max Width: 2.00 mm
- Supported Cable Types: UCM Thin TMiviy, Tiger Eye™ contacts
- Certifications: RoHS Compliant
- Design Features: Optional locking clip, high-reliability contacts, four-point redundancy
- Temperature Range: -55°C to +125°C
Buy the Samlec Series SMM: SMM13202SSK Edge Card Connector
Purchase the Samlec SMM13202SSK edge card connector online today and ensure your electronic assemblies feature high reliability, robust contact materials, and excellent thermal performance. Ideal for mission-critical applications, this connector offers up to 100 insertion cycles, RoHS compliance, and a temperature range from -55°C to +125°C. Its design includes optional locking clips for secure connections and supports various cable options such as UCM Thin TMiviy and Tiger Eye contacts. Enhance your project’s durability and signal integrity with ease and confidence by buying now.
Buy Samlec SMM13202SSK now and experience unmatched reliability and performance for demanding PCB applications.
Frequently Asked Questions
Where can I buy SAMTEC SMM13202SSK?
You can click on the BUY or RFQ button to purchase SMM13202SSK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM13202SSK?
You can download the SMM13202SSK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM13202SSK?
SAMTEC
