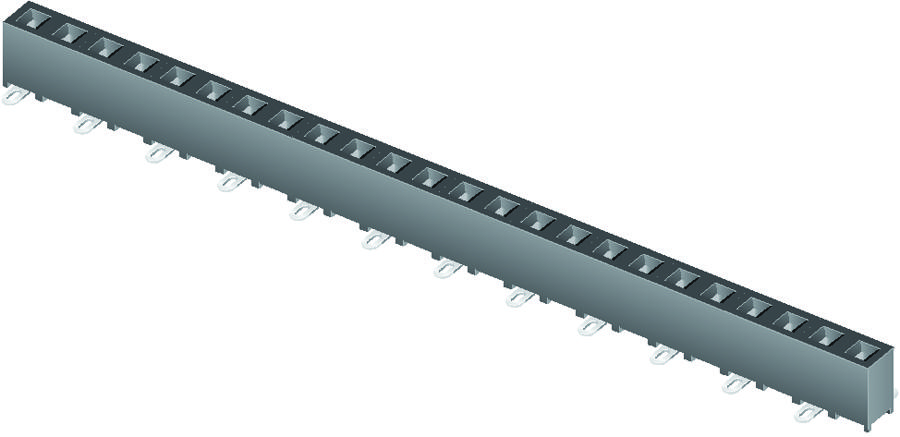

SAMTEC SMM13602SSK PCB Board Connector
The SMM series is a high-reliability board mate connector featuring black liquid crystal polymer insulators and BeCu contact materials. It offers a pitch of 0.0787 inches (2.00 mm), compatible with UCM Thin TMiviy MTMM, and supports optional configurations like polarizing keys and gold plating for enhanced performance. With a voltage rating of 350VAC and operating temperatures ranging from -55°C to +125°C, it is suitable for demanding electronic applications requiring durability, ease of assembly, and reliable electrical connections in compact designs. Its extended cycle life ensures longevity in operational environments.
SAMTEC SMM13602SSK PCB Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: BeCu
- Plating: Sn or Au over 50 μ" Ni
- Current Rating: 3.2 A per pin (2 pins powered)
- Voltage Rating: 350VAC
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.05 mm to 3.56 mm (0.120 to 0.140 inches)
- Pitch: 0.0787 inches (2.00 mm)
- RoHS Compliant: Yes
- Lead-Free Solderable: No
- Max Cycles: 100 with 10 μ" (0.25 μm) Au plating
- Number of Pins: Varies; typically 2 positions
- Compliance: RoHS, with optional gold plating for enhanced contact durability
- PCB hole size: Up to 0.08 inches maximum
- Preferred for high-density electronic packaging
- Suitable for applications requiring repeated mating cycles and reliable electrical connections
Buy the Buy Samtec SMM Series Part Number SMM13602SSK Online
Secure your electronic projects with the Samtec SMM Series PCB connector. Designed for high reliability, it features BeCu contacts, RoHS compliance, and a pitch of 0.0787 inches. Perfect for applications requiring repeated connections, it offers a voltage rating of 350VAC, operates efficiently from -55°C to +125°C, and supports optional gold plating for enhanced durability. Easy to install with standard dimensions, this connector ensures stable, long-lasting electrical connections, making it ideal for sophisticated electronic systems and high-density layouts.
Buy Samtec SMM13602SSK now and experience reliable high-density connections with extended cycle life for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SMM13602SSK?
You can click on the BUY or RFQ button to purchase SMM13602SSK from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SMM13602SSK?
You can download the SMM13602SSK datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SMM13602SSK?
SAMTEC
