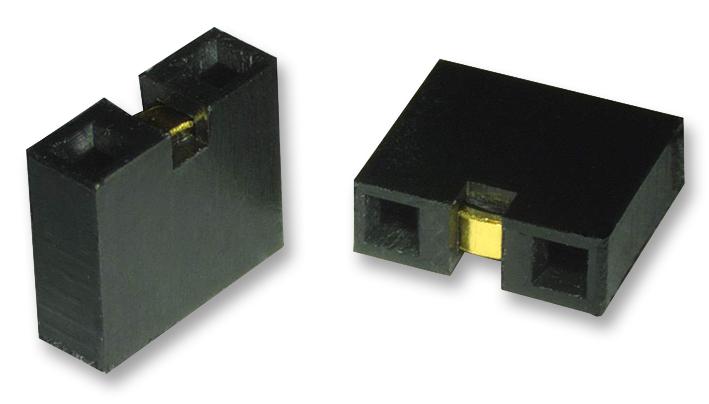

SAMTEC SNM100BKG Electrical Shunt
The SNM-100-BK-G is a compact 2-pole shunt designed for precise electrical testing in industrial applications. With dimensions of 2.54 x 1.27 mm, it features gold-plated phosphor bronze contacts for enhanced conductivity and corrosion resistance. The glass-filled polyester insulator provides mechanical stability and insulative properties. It supports a working voltage of 450 VAC and has a current rating of 10 milliohms resistance, making it ideal for measuring and shunting in various electrical systems. Compatible with TMS, MTMS, and DWM series connectors, it ensures reliable and efficient performance in demanding environments.
SAMTEC SNM100BKG Electrical Shunt Specifications:
- Dimensions: 2.54 x 1.27 mm
- Contact Material: Gold-plated Phosphor Bronze
- Insulator Material: Glass Filled Polyester
- Current Rating: 10 milliohms resistance
- Working Voltage: 450 VAC
- Contact Resistance: 10 milliohms
- Suitable for connectors: TMS, MTMS, DWM
- Temperature Range: -55°C to +125°C
- RoHS Compliant: Yes
- Gold Plating Thickness: 10 mil (0.25 mm)
Buy the Samtec SNM100BKG – Reliable Electrical Shunt for Industrial Applications
Order the Samtec SNM-100-BK-G online today to ensure high-quality electrical testing with reliable gold-plated contacts and durable insulator. This 2-pole shunt is perfect for industrial applications requiring precise measurement and stable performance. Featuring a compact size of 2.54 by 1.27 millimeters, it supports a working voltage of 450 volts AC and offers a current resistance of 10 milliohms. Easy to integrate with TMS, MTMS, and DWM series connectors, this shunt guarantees efficient operation in demanding environments. Purchase now for quick delivery and expert support.
Buy Samtec SNM100BKG now and experience unmatched reliability and performance in electrical testing and shunting applications.
Frequently Asked Questions
Where can I buy SAMTEC SNM100BKG?
You can click on the BUY or RFQ button to purchase SNM100BKG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNM100BKG?
You can download the SNM100BKG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNM100BKG?
SAMTEC
