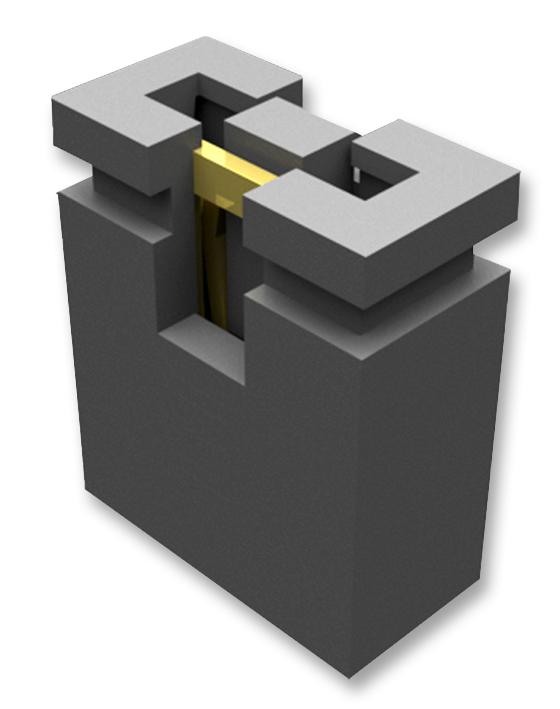

SAMTEC SNT100BKGH High-Performance Connector
The SNT-100-BK-G is a high-performance connector system with glass-filled polyester insulators and phosphor bronze contacts. Rated for up to 4.3 A per pin (SNT) or 3.9 A (MNT), it operates within -55°C to +125°C and withstands voltages up to 450 VAC. The connector features a sealed design with gold-plated contacts, insertion depths of 4.32 mm, 2.29 mm, and 3.43 mm for different models, and contact resistance as low as 5 mΩ. Suitable for electronics, industrial automation, and telecommunications applications, it ensures reliable electrical connections with RoHS compliance and various length options.
SAMTEC SNT100BKGH High-Performance Connector Specifications:
- Insulator Material: Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Current Rating (SNT/TSW): 4.3 A per pin
- Current Rating (MNT/TSM): 3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 5 mΩ
- Working Voltage: 450 VAC
- Insertion Depths: 4.32 mm, 2.29 mm, 3.43 mm
- Lead: 0.64 mm (0.025 inch)
- Gold Plating Thickness: 10μ
- RoHS Compliant
- Number of Positions: 10
- Note: Some lengths and styles are non-standard, non-returnable.
Buy the Buy Samtec SNT-100-BK-G Part Number SNT100BKGH Online
Purchase the Samtec SNT-100-BK-G connector online today to benefit from premium quality, reliable electrical performance, and versatile options for industrial automation, electronics, and telecommunications. With its glass-filled polyester insulator and phosphor bronze contacts, this connector guarantees strong, durable connections capable of handling up to 4.3 A per pin. Its gold plating provides excellent conductivity and corrosion resistance, ensuring long-term reliability. Easy to integrate with multiple insertion depths and RoHS compliance, this product is ideal for demanding environments.
Order your Samtec SeriesSNT-100-BK-G connector today and ensure reliable, high-quality electrical connections in your industrial or electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SNT100BKGH?
You can click on the BUY or RFQ button to purchase SNT100BKGH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100BKGH?
You can download the SNT100BKGH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100BKGH?
SAMTEC
