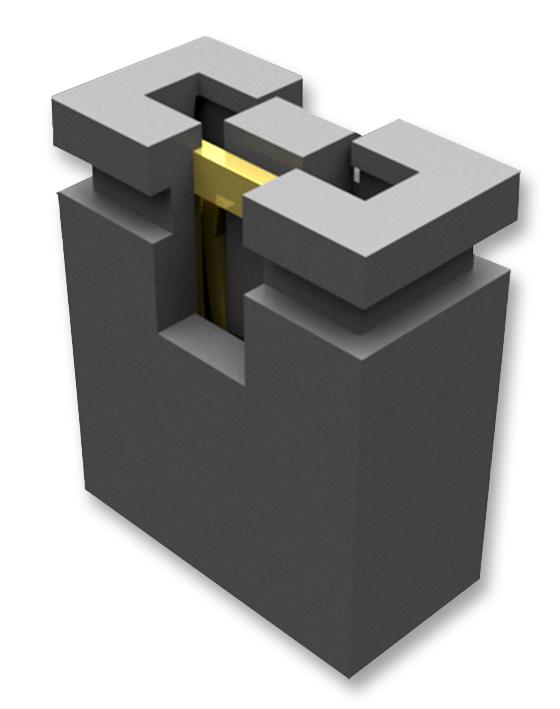

SAMTEC SNT100BKT Jumper Shunt
The SNT-100-BK-T is a 2-position jumper shunt with tin-plated phosphor bronze contacts, designed for reliable electrical connection. It features a black glass-filled polyester insulator and is compatible with a wide range of headers including TSW, HTSW, MTSW, HMTSW, TLW, DW, EW, ZW, HW, TSM, BST, and PHT series. Suitable for industrial applications, it operates within a temperature range of -55°C to 125°C, ensuring durability in various environmental conditions.
SAMTEC SNT100BKT Jumper Shunt Specifications:
- Insulator Material: Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Current Rating (SNT/TSW): 4.3 A per pin
- Current Rating (MINT/TSM): 3.9 A per pin
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Working Voltage: MNT=450 VAC
- Insertion Depth: SNT=4.32 mm, 2SN=2.29 mm, SNM=3.43 mm
- Lead: SNT=0.64 mm, 2SN=0.51 mm
- Insertion Force: 33 oz (9.17 N) average
- Withdrawal Force: 27 oz (7.51 N) average
- RoHS Compliant: Yes
Buy the Samtec Series SNT-100-BK-T Jumper Shunt: SNT100BKT
Purchase the Samtec SNT-100-BK-T jumper shunt online today to enjoy high-quality connectivity with tin-plated phosphor bronze contacts and a durable glass-filled polyester insulator. Designed for industrial applications, it provides reliable operation within a wide temperature range from -55°C to 125°C. Compatible with diverse headers and series, its specifications include a contact resistance of 5 mΩ, current ratings of 4.3 A per pin, and RoHS compliance. Perfect for engineers seeking durable and efficient jumper components for complex systems.
Get Samtec SNT-100-BK-T today—built for reliable electrical connection and environmental durability.
Frequently Asked Questions
Where can I buy SAMTEC SNT100BKT?
You can click on the BUY or RFQ button to purchase SNT100BKT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100BKT?
You can download the SNT100BKT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100BKT?
SAMTEC
