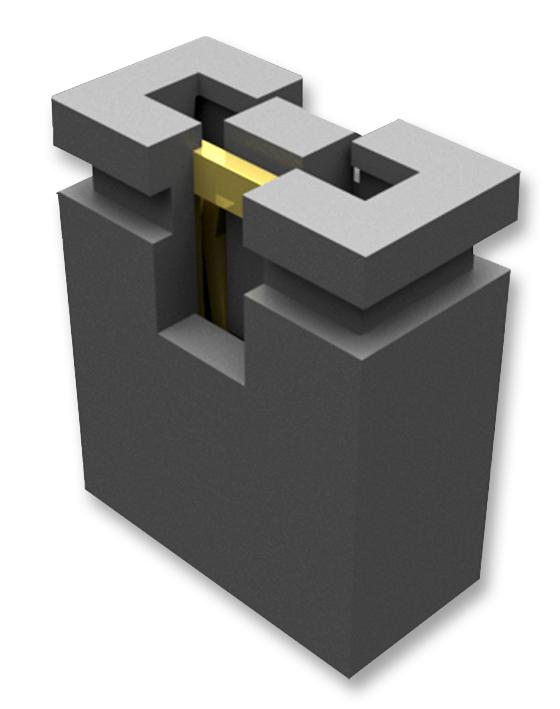

SAMTEC SNT100BKTH Multi-Position Shunt
The SNT series multi-position shunt offers reliable electrical connections for industrial applications, compatible with various 0.1-inch terminal strips including TSW, HTSW, MTSW, HMTSW, TLW, DW, EW, ZW, HW, TSM, BST, and PHT types. Made from glass-filled polyester insulator material and phosphor bronze contact material, it supports a current rating of 4.3 A per pin (SNT/TSW) and 3.9 A per pin (MNT/TSM). Operating temperature ranges from -55°C to +125°C, with contact resistance of 5 mΩ (SNT) and 10 mΩ (SNM). Working voltage is 450 VAC for MNT. Insertion depths vary by model, from 2.29 mm to 4.32 mm, with gold plating options for enhanced conductivity. RoHS compliant, designed for durability and ease of installation in complex circuit assemblies.
SAMTEC SNT100BKTH Multi-Position Shunt Specifications:
- Insulator Material: Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Current Rating (SNT/TSW): 4.3 A per pin
- Current Rating (MNT/TSM): 3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Working Voltage: 450 VAC (MNT)
- Insertion Depth: SNT=4.32 mm, 2SN=2.29 mm, SNM=3.43 mm
- Lead: 0.25 mm (0.010") to 0.51 mm (0.020")
- Gold Plating Option: Yes
- RoHS Compliant: Yes
- Note: Some lengths and styles are non-standard and non-returnable.
Buy the Buy Samtec SNT Series Multi-Position Shunt Part Number SNT100BKTH Online
Purchase the Samtec SNT series multi-position shunt online today for high-quality, reliable connections in industrial applications. Designed with durable glass-filled polyester insulators and phosphor bronze contacts, it offers a current capacity of 4.3 A per pin and can operate seamlessly from -55°C to +125°C. With options for gold plating to enhance conductivity and RoHS compliance, this component ensures longevity and optimal performance in complex circuit assemblies. Easy to install and suitable for various terminal strip types, the SNT series is ideal for professional electrical infrastructure needs.
Get Samtec SNT100BKTH today—built for reliable electrical connections and industrial durability.
Frequently Asked Questions
Where can I buy SAMTEC SNT100BKTH?
You can click on the BUY or RFQ button to purchase SNT100BKTH from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100BKTH?
You can download the SNT100BKTH datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100BKTH?
SAMTEC
