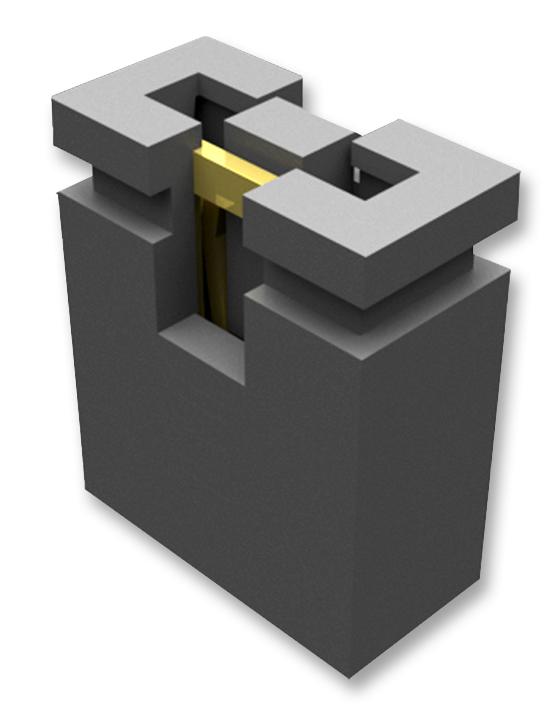

SAMTEC SNT100BLG Multi-Position Shunt
The SNT series multi-position shunt connects with various 0.1-inch terminal strips like TSW, HTSW, MTSW, and others. Designed for industrial use, it ensures reliable electrical connections across multiple positions. Made with phosphor bronze contact material and insulators of thermoplastic or glass-filled polyester options, the shunt supports current ratings up to 4.3 A per pin for SNT and 3.9 A for MNT, with a working voltage of 450 VAC. It features an insertion depth of 2.29 mm, a temperature range from -55°C to +125°C, and complies with industry standards for safe and durable electrical connections.
SAMTEC SNT100BLG Multi-Position Shunt Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Thermoplastic or Glass Filled Polyester options available
- Current Rating (SNT): 4.3 A per pin
- Current Rating (MNT): 3.9 A per pin
- Working Voltage: 450 VAC
- Operating Temp Range: -55°C to +125°C
- Insertion Depth: 2.29 mm
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Lead Size Accepted: 0.64 mm (.025 inch)
- Gold Plating: Other options available
- Dimensions: Insulation height approximately 2.29 mm, length varies with model
- Certification: Industry compliant for electrical safety
Buy the Samtec SNT-100-BK-G – Reliable Shunt for Industrial Applications
Get your Samtec SNT-100-BK-G series multi-position shunt online today for reliable electrical connections across various terminal strip types. Designed for industrial use, it features phosphor bronze contacts, thermoplastic or polyester insulators, supporting up to 4.3 A per pin with a voltage of 450 VAC. Its compact insertion depth of 2.29 mm and broad temperature range from -55°C to +125°C make it suitable for demanding environments. Ensure your electrical system’s durability and safety by purchasing this professional-grade shunt now.
Order your Samtec SNT-100-BK-G series multi-position shunt today and ensure dependable electrical connections in your industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SNT100BLG?
You can click on the BUY or RFQ button to purchase SNT100BLG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100BLG?
You can download the SNT100BLG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100BLG?
SAMTEC
