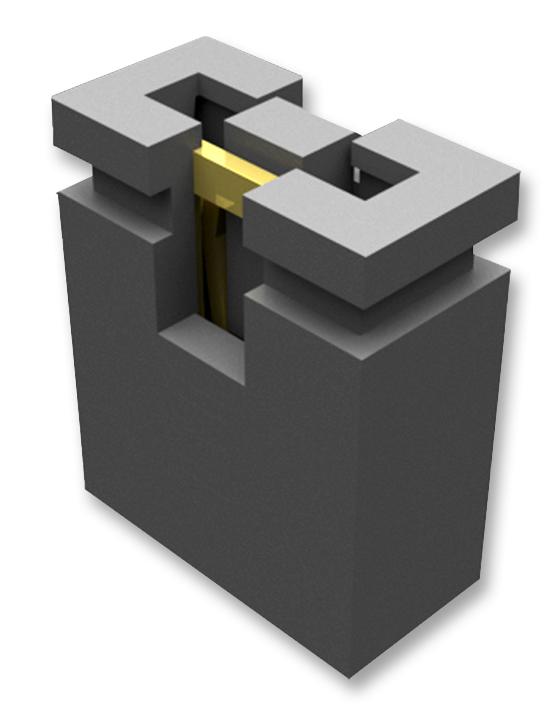

SAMTEC SNT100BLT Multi-Position Shunt
The SNT series multi-position shunt provides reliable electrical connections compatible with 0.1-inch pitch terminal strips such as TSW, HTSW, MTSW, and others, making it ideal for industrial automation and control systems. Constructed with phosphor bronze contact material and insulators of thermoplastic or glass-filled polyester, it supports current ratings of 4.3 A per pin (SNT) and 3.9 A per pin (MNT). Operating temperature ranges from -55°C to +125°C, with a contact resistance of 5 to 10 milliohms. Designed for easy insertion and withdrawal, these shunts meet rigorous industry standards for durability and performance.
SAMTEC SNT100BLT Multi-Position Shunt Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Thermoplastic or Glass Filled Polyester
- Current Rating: SNT=4.3 A per pin, MNT=3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 5-10 milliohms
- Working Voltage: SNT=450 VAC
- Insertion Depth: 0.090" (2.29 mm)
- Lead Size Accepted: 0.025" (0.64 mm), 0.020" (0.51 mm)
- Insertion Force: 33 oz (9.17 N) per contact
- Withdrawal Force: Appropriate values per contact
- Number of Pins per Wheel: 6
- Compatible with various terminal strip types
- Designed for industrial applications including automation and control systems
Buy the Samtec SNT100BLT – Reliable Shunt for Industrial Applications
Enhance your industrial automation and control systems with the high-quality Samtec multi-position shunt. Designed for compatibility with 0.1-inch pitch terminal strips, this shunt ensures reliable electrical connections under demanding conditions. Its construction features durable phosphor bronze contacts and thermoplastic or glass-filled polyester insulators, supporting current ratings of 4.3 A and operating reliably from -55°C to +125°C. Easy to insert and remove, the shunt offers exceptional performance, durability, and compliance with industry standards — making it the perfect choice for your control and automation needs.
Order your Samtec SNT100BLT series multi-position shunt today and ensure dependable electrical connections for your control systems and automation projects.
Frequently Asked Questions
Where can I buy SAMTEC SNT100BLT?
You can click on the BUY or RFQ button to purchase SNT100BLT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100BLT?
You can download the SNT100BLT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100BLT?
SAMTEC
