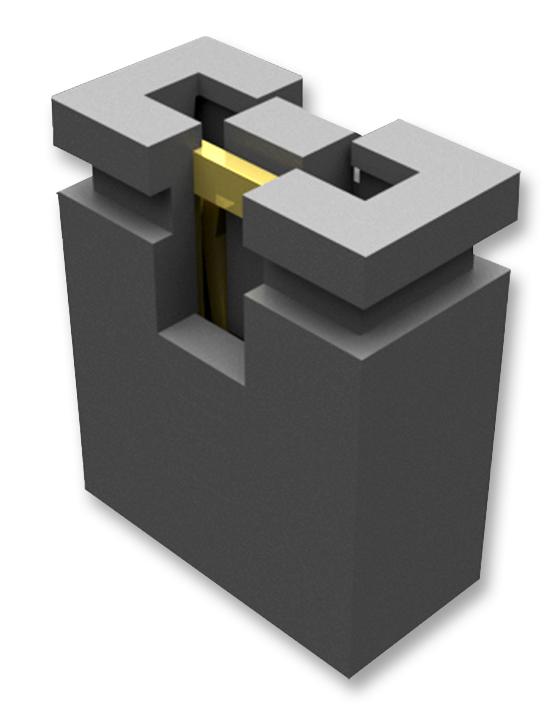

SAMTEC SNT100YWG multi-position shunt
The SNT series multi-position shunt ensures reliable electrical connections in industrial applications, compatible with 0.1-inch terminal strips like TSW, HTSW, MTSW, and others. Made with a glass-filled polyester insulator and phosphor bronze contacts, it supports currents up to 4.3 A per pin, with operational temperatures from -55°C to +125°C. Featuring a working voltage of 450 VAC, it has an insertion depth of approximately 2.29 mm and an insertion force of 33 oz. Its current resistance is 5 mΩ, ensuring dependable performance for various high-demand electrical systems.
SAMTEC SNT100YWG multi-position shunt Specifications:
- Contact Material: Phosphor Bronze
- Insulator Material: Glass Filled Polyester
- Current Rating: SNT=4.3 A per pin, MNT=3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Working Voltage: 450 VAC
- Insertion Depth: 2.29 mm (0.090 inches)
- Lead Size Accepted: 0.64 mm (0.025 inches) SQ, 0.51 mm (0.020 inches) SQ
- Contact Resistance: SNT=5 mΩ, SNM=10 mΩ
- Insertion Force: 33 oz (9.17 N) average
- Withdrawal Force: Specified per contact, non-standard lengths may vary
- Compatible Terminal Strip Spacing: 0.1-inch
- Size: Approximately 43 mm length, 6 pins per wheel
- Temperature Range: -55°C to +125°C
Buy the Buy Industrial Shunt Part Number SNT100YWG Online
Order the SNT series multi-position shunt online today to ensure reliable electrical connectivity in industrial and automation applications. Compatible with 0.1-inch terminal strips, it supports high current ratings of up to 4.3 A per pin and operates across a wide temperature range from -55°C to +125°C. Constructed with durable phosphor bronze contacts and glass-filled polyester insulators, this shunt provides stable, low-resistance connections vital for efficient operation in high-demand environments. Purchase now for fast delivery and superior performance.
Buy Samtec SNT100YWG shunt now and experience dependable high-current electrical connections in industrial systems.
Frequently Asked Questions
Where can I buy SAMTEC SNT100YWG?
You can click on the BUY or RFQ button to purchase SNT100YWG from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100YWG?
You can download the SNT100YWG datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100YWG?
SAMTEC
