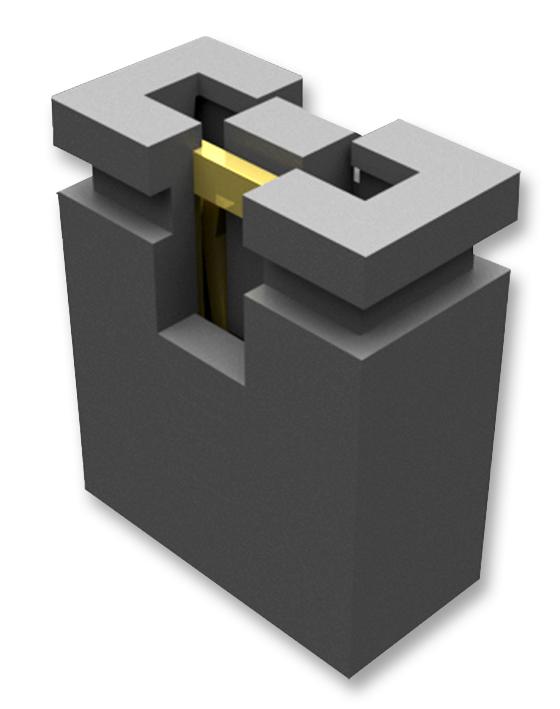

SAMTEC SNT100YWT Shunt Connector
The SNT-100-YW-T is a yellow shunt connector featuring tin-plated phosphor bronze contacts and a glass-filled polyester insulator. It is compatible with various series including TSW, HTSW, MTSW, HMTSW, TLW, DW, EW, ZW, HW, TSM, BST, and PHT. The connector supports a current rating of 4.3A per pin (with one pin powered per row) and has a contact resistance of 5 milliohms. It is suitable for use in industrial applications and operates effectively within a temperature range of -55°C to 125°C.
SAMTEC SNT100YWT Shunt Connector Specifications:
- Insulator Material: Glass Filled Polyester
- Contact Material: Phosphor Bronze
- Current Rating: SNT=4.3 A per pin, MNT=3.9 A per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: SNT=5 mQ, SNM=10 mQ
- Working Voltage: MNT=450 VAC
- Insertion Depth: SNT=4.32 mm, 2SN=2.29 mm, SNM=3.43 mm
- Lead Diameter: SNT=0.64 mm, 2SN=0.51 mm
- Insertion Force: 33 oz (9.17 N)
- Withdrawal Force: 27 oz (7.51 N)
- RoHS Compliant: Yes
Buy the Buy Samtec SNT-100-YW-T Part Number SNT100YWT Online
Experience seamless industrial connections with the Samtec SNT-100-YW-T shunt connector, featuring durable phosphor bronze contacts and glass-filled polyester insulator. Designed for high reliability, it supports a current of 4.3A per pin and operates from -55°C to 125°C. Compatible with multiple series, this RoHS-compliant connector ensures optimal performance in demanding environments. Easy to install with a secure insertion depth, it is ideal for automation systems, control panels, and electrical distribution networks intended for industrial or manufacturing applications. Buy online now for fast, secure delivery!
Buy Samtec SNT-100-YW-T now and ensure reliable, high-performance industrial connections with corrosion-resistant phosphor bronze contacts.
Frequently Asked Questions
Where can I buy SAMTEC SNT100YWT?
You can click on the BUY or RFQ button to purchase SNT100YWT from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SNT100YWT?
You can download the SNT100YWT datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SNT100YWT?
SAMTEC
