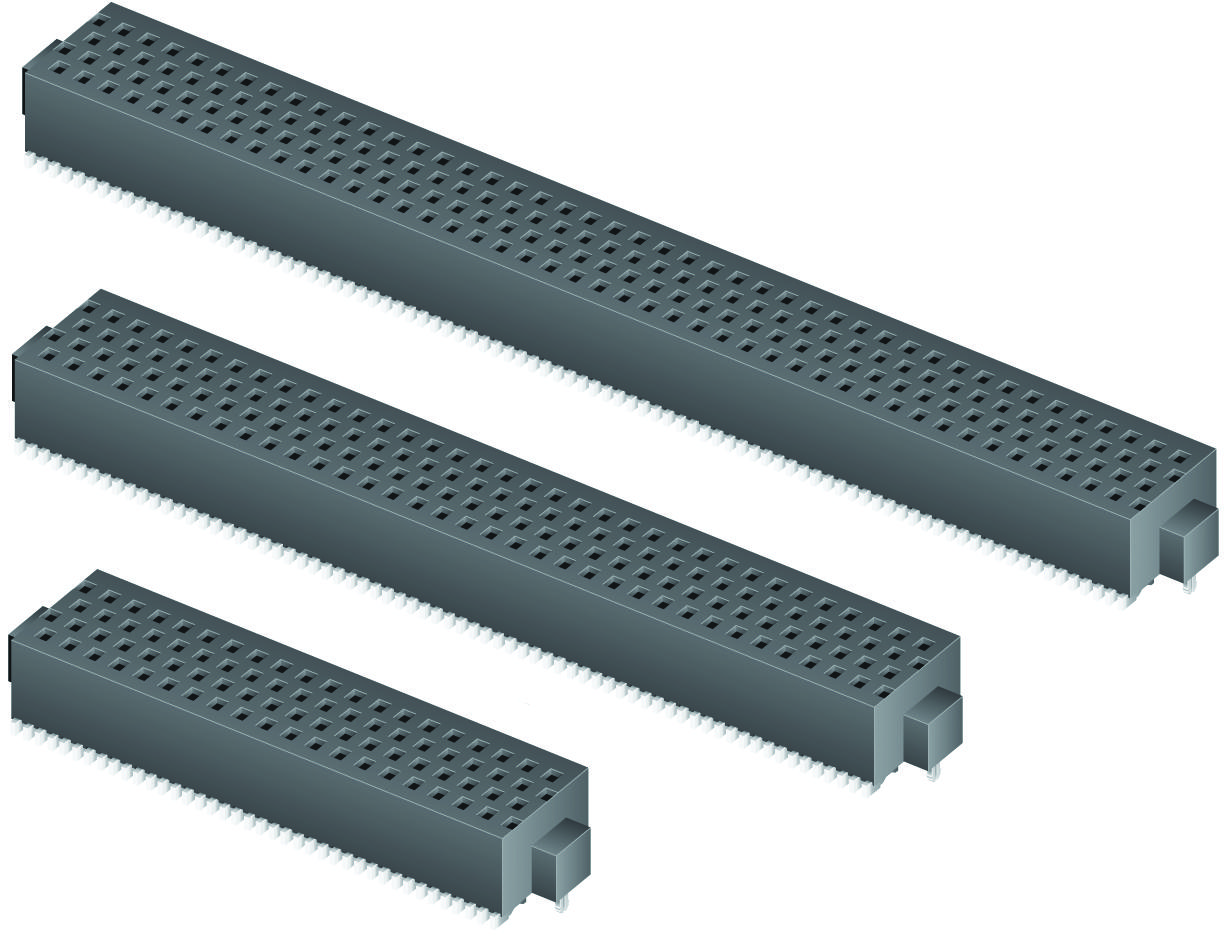

SAMTEC SOLC11002SQ Micro Rugged Connector
The SOLC-150-02-F-Q-A is a surface-mount, micro Rugged connector designed for high reliability and durability in various electronic applications. Made from black liquid crystal polymer insulator and phosphor bronze contacts plated with gold over nickel, it offers efficient electrical performance with a current rating of 2.4A per pin. Its operating temperature ranges from 85°C to 125°C, and it supports over 100 mating cycles. RoHS compliant, it ensures eco-friendly manufacturing and safe disposal, suitable for demanding industrial and commercial electronics requiring precise, secure connections.
SAMTEC SOLC11002SQ Micro Rugged Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50Ni (1.27 um)
- Current Rating: 2.4A per pin
- Operating Temperature Range: 85°C to 125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.066" to 0.142"
- Wipe Insertion Force: 2.0 oz (0.56 N)
- Normal Force: 75 grams (0.74 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: 100+
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- Lead Coplanarity: 0.004" max (05-35), 0.006" max (40-50)
Buy the Samtec Series SOLC Micro Rugged: SOLC-150-02-F-Q-A
Discover the high-reliability Micro Rugged connector designed for demanding electronic applications. Made from high-quality materials such as liquid crystal polymer insulator and phosphor bronze contacts, it features gold over nickel plating, supporting 2.4A per pin and operating at temperatures from 85°C to 125°C. With over 100 mating cycles, RoHS compliance, and lead-free construction, it ensures eco-friendly, durable, and precise connections ideal for industrial and commercial electronics. Purchase online now for dependable, high-performance connectivity solutions.
Get Samtec SOLC-150-02-F-Q-A today—built for precision and long-lasting durability in rugged electronic environments.
Frequently Asked Questions
Where can I buy SAMTEC SOLC11002SQ?
You can click on the BUY or RFQ button to purchase SOLC11002SQ from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SOLC11002SQ?
You can download the SOLC11002SQ datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SOLC11002SQ?
SAMTEC
