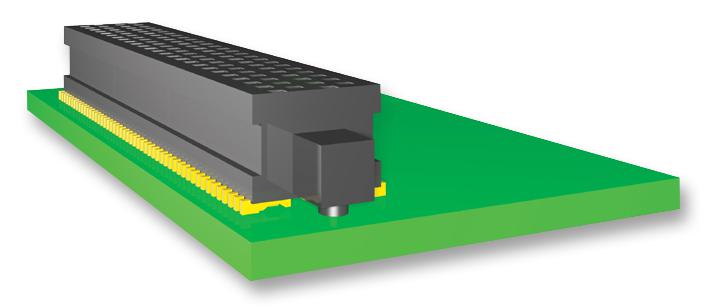

SAMTEC SOLC12002LQA Socket Strip
The SOLC-120-02-L-Q-A is an 80-position, four-row surface-mount Tiger Buy™ socket strip with gold-plated phosphor bronze contacts and a black liquid crystal polymer insulator. Compatible with TOLC quad-row terminal strips, it offers reliable electrical connections suitable for industrial applications. It supports a current rating of 2.4A per pin, has a contact resistance of 10 milliohms, and operates reliably within -55°C to 125°C. Designed for secure, long-lasting performance, making it ideal for rugged electronics and PCB interconnections.
SAMTEC SOLC12002LQA Socket Strip Specifications:
- Number of Positions: 80
- Rows: Four
- Material: Black Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Au over 50 um Ni (gold over nickel)
- Current Rating: 2.4A per pin
- Contact Resistance: 10 milliohms
- Operating Temp Range: -55°C to 125°C
- Insertion Depth: 1.68 mm (.066") to 3.61 mm (.142")
- Operating Cycles: 100+
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Maximum Coplanarity: 0.004" to 0.006"
- Compatible with: TOLC quad-row terminal strip
- Design Features: Drop-in replacement for FOLC/MOLC, with locking clips and alignment pins options
Buy the Samtec SOLC12002LQ-A – Reliable Socket Strip for Industrial Applications
Discover the high-quality socket strip designed for demanding industrial projects. The Samtec SOLC-120-02-L-Q-A features gold-plated phosphor bronze contacts and a durable liquid crystal polymer insulator, ensuring reliable electrical connections across wide temperature ranges. With a current capacity of 2.4A per pin and a contact resistance of 10 milliohms, it is suitable for high-performance applications. Its rugged design supports over 100 cycles, making it perfect for long-term, dependable PCB interconnect solutions. Shop online now for fast, secure purchasing.
Order your Samtec Series SOLC12002LQ-A socket strip today and ensure your electronic connections are secure and durable for rugged industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SOLC12002LQA?
You can click on the BUY or RFQ button to purchase SOLC12002LQA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SOLC12002LQA?
You can download the SOLC12002LQA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SOLC12002LQA?
SAMTEC
