SAMTEC SOLC12502LQA Micro Rugged Connector
The SOLC12502LQA is a high-performance, surface-mount connector designed for micro rugged applications. Made from black liquid crystal polymer, it features phosphor bronze contacts with gold over nickel plating, ensuring excellent conductivity and corrosion resistance. This connector supports current ratings up to 2.4A per pin, with a temperature range of 85°C to 125°C. It offers a maximum cycle life of over 100 insertions, RoHS compliance, and lead-free solderability. Suitable for compact electronic assemblies requiring reliable, durable contact points with precise alignment and easy installation.
SAMTEC SOLC12502LQA Micro Rugged Connector Specifications:
- Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50 um Ni
- Current Rating: 2.4A per pin
- Operating Temperature Range: 85°C to 125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: 1.68 mm to 3.61 mm
- Wipe: 0.38 mm
- Lead-Free Solderable: Yes
- RoHS Compliant: Yes
- Maximum Cycles: 100+
- Mounting Type: Surface Mount
- Dimensions: Based on standard sizes with 1.27 mm pitch
- Processing: Lead-free solder
- Coplanarity: 0.10 mm to 0.15 mm max.

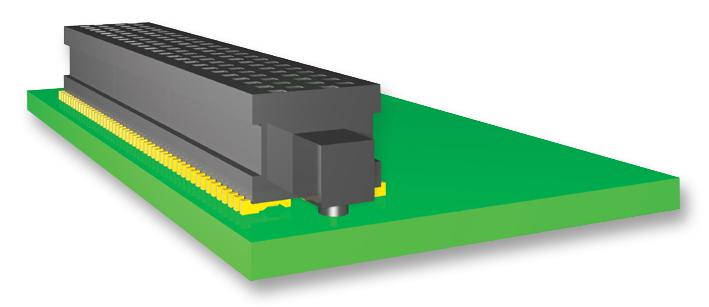

Buy the Samtec Series SOLC Connector: SOLC12502LQA
Discover the reliable and durable Micro Rugged Connector designed for high-performance electronic assemblies. Made from high-quality materials, it features gold-plated contacts supporting 2.4A per pin, suitable for demanding environments. The connector's rohs compliance, lead-free construction, and easy surface mounting make it ideal for compact devices requiring reliable connections with over 100 insertion cycles. Its precise dimensions and robust design ensure secure, long-lasting performance, suitable for advanced electronic systems and rugged industrial applications. Purchase online today for quality and durability.
Get Samtec SOLC12502LQA today—built for precision and long-lasting durability in micro rugged applications.
Frequently Asked Questions
Where can I buy SAMTEC SOLC12502LQA?
You can click on the BUY or RFQ button to purchase SOLC12502LQA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SOLC12502LQA?
You can download the SOLC12502LQA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SOLC12502LQA?
SAMTEC
