SAMTEC SOLC12502SQ Surface-mount connector
The SOLC12502SQ is a high-performance, surface-mount socket connector designed for robust electronic applications. Made from black Liquid Crystal Polymer insulator and phosphor bronze contacts plated with gold over nickel for excellent conductivity and corrosion resistance. It supports a current rating of 2.4A per pin with a maximum of 100+ cycles of use. Operating within temperature ranges of 85°C to 125°C, it features a 1.27 mm pitch, precise insertion and withdrawal forces, and RoHS compliance, making it suitable for rugged and reliable electronic connections in compact modules and embedded systems.
SAMTEC SOLC12502SQ Surface-mount connector Specifications:
- Pitch: 1.27 mm (0.050 inches)
- Material: Black Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Gold over 50 um Nickel
- Current Rating: 2.4A per pin
- Operating Temp Range: 85°C to 125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: 0.066 to 0.142 inches (1.68 to 3.61 mm)
- Wipe Length: 0.015 inches (0.38 mm)
- Cycles: 100+
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Lead Coplanarity: Max 0.004 to 0.006 inches (0.10 to 0.15 mm)
- Processing: Surface Mount Technology (SMT)

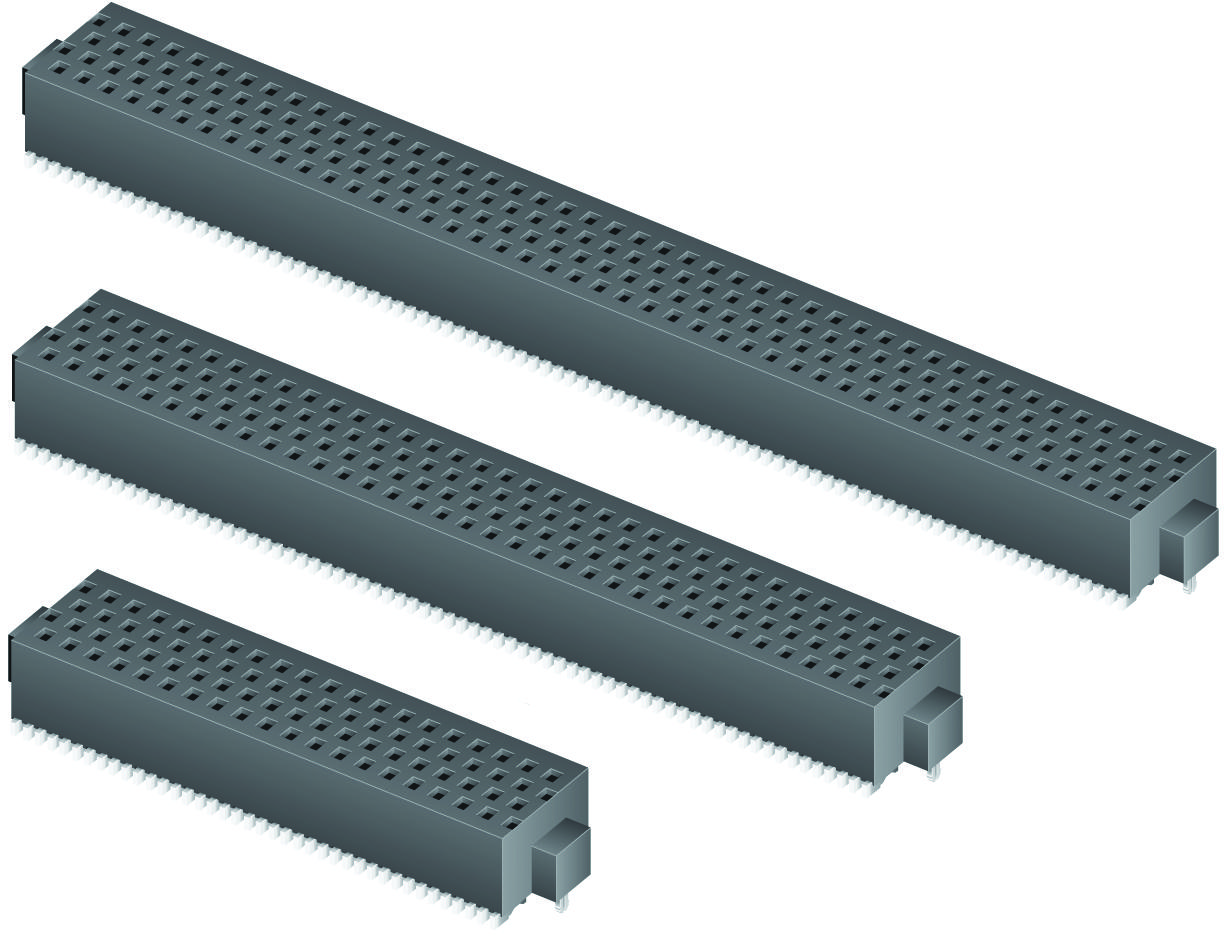

Buy the Buy Samtec SOLC12502SQ Part Number Online
Purchase the Samtec SOLC12502SQ connector online today and benefit from our fast shipping and secure checkout. This high-quality surface-mount connector is crafted from durable Liquid Crystal Polymer insulator and phosphor bronze contacts with gold over nickel plating for maximum conductivity and corrosion resistance. Designed to support 2.4A per pin and withstand over 100 cycles, it guarantees a reliable connection in demanding electronic environments. Ideal for compact modules, embedded systems, and rugged electronic applications, it requests minimal insertion force while providing excellent mechanical stability and RoHS compliance for environmentally friendly manufacturing.
Order your Samtec SOLC12502SQ surface-mount connector today and ensure reliable, high-performance connections in your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SOLC12502SQ?
You can click on the BUY or RFQ button to purchase SOLC12502SQ from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SOLC12502SQ?
You can download the SOLC12502SQ datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SOLC12502SQ?
SAMTEC
