SAMTEC SOLC13002SQ Micro Rugged Connector
The SOLC series is a surface-mount, micro rugged connector that features a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold over nickel. Designed for high-reliability applications, it supports currents up to 2.4A per pin and operates within temperatures of 85°C to 125°C. This connector offers an insertion depth of up to 3.61 mm with a wipe of 0.38 mm, is RoHS compliant, and can withstand over 100 mating cycles. It is suitable for PCB applications with optional locking clips and alignment pins for secure connection.
SAMTEC SOLC13002SQ Micro Rugged Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50 μm Ni
- Current Rating: 2.4A per pin
- Operating Temp Range: 85°C to 125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: Up to 3.61 mm
- Wipe: 0.38 mm
- Insertion Force: 2.0 oz (0.56 N)
- Normal Force: 75 grams (0.74 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: 100+
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- SMT Lead Coplanarity: Max 0.10 mm (0.004"), 0.15 mm (0.006") on sizes 40-50
- Compatible with: Micro Rugged and other sizes, optional locking clips and alignment pins

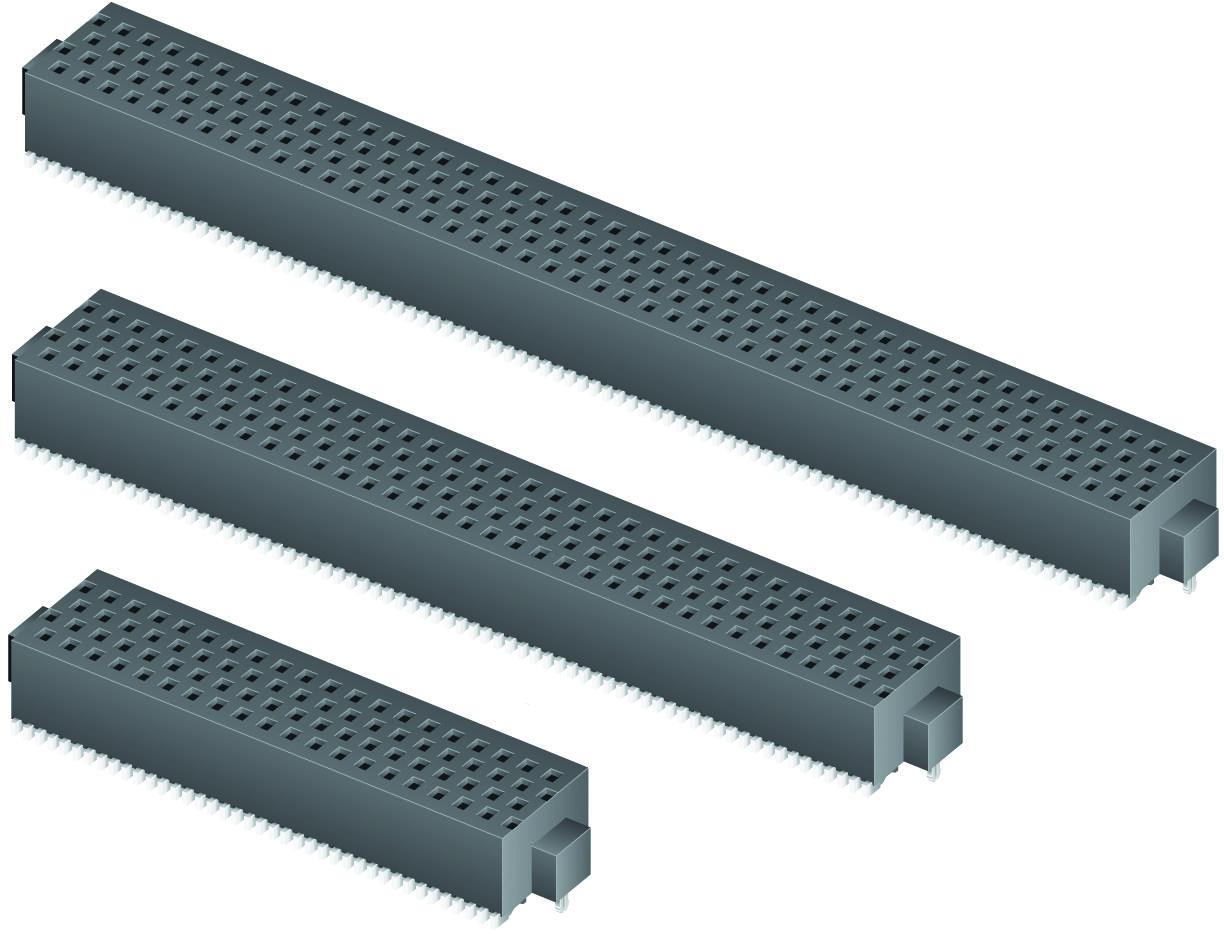

Buy the Buy Samtec Connectors Part Number SOLC13002SQ Online
Experience the reliability of the Micro Rugged Connector designed by Samtec. Crafted with high-quality materials like liquid crystal polymer and phosphor bronze, it supports 2.4A per pin and withstands temperatures from 85°C to 125°C. With over 100 mating cycles, this RoHS compliant connector features gold over nickel plating, ensuring excellent corrosion resistance and electrical performance. Ideal for compact, high-reliability electronic modules requiring secure, vibration-resistant connections, making it a perfect choice for rugged electronics and aerospace applications.
Get Samtec SOLC13002SQ today—designed for high durability and reliable PCB mating in rugged environments.
