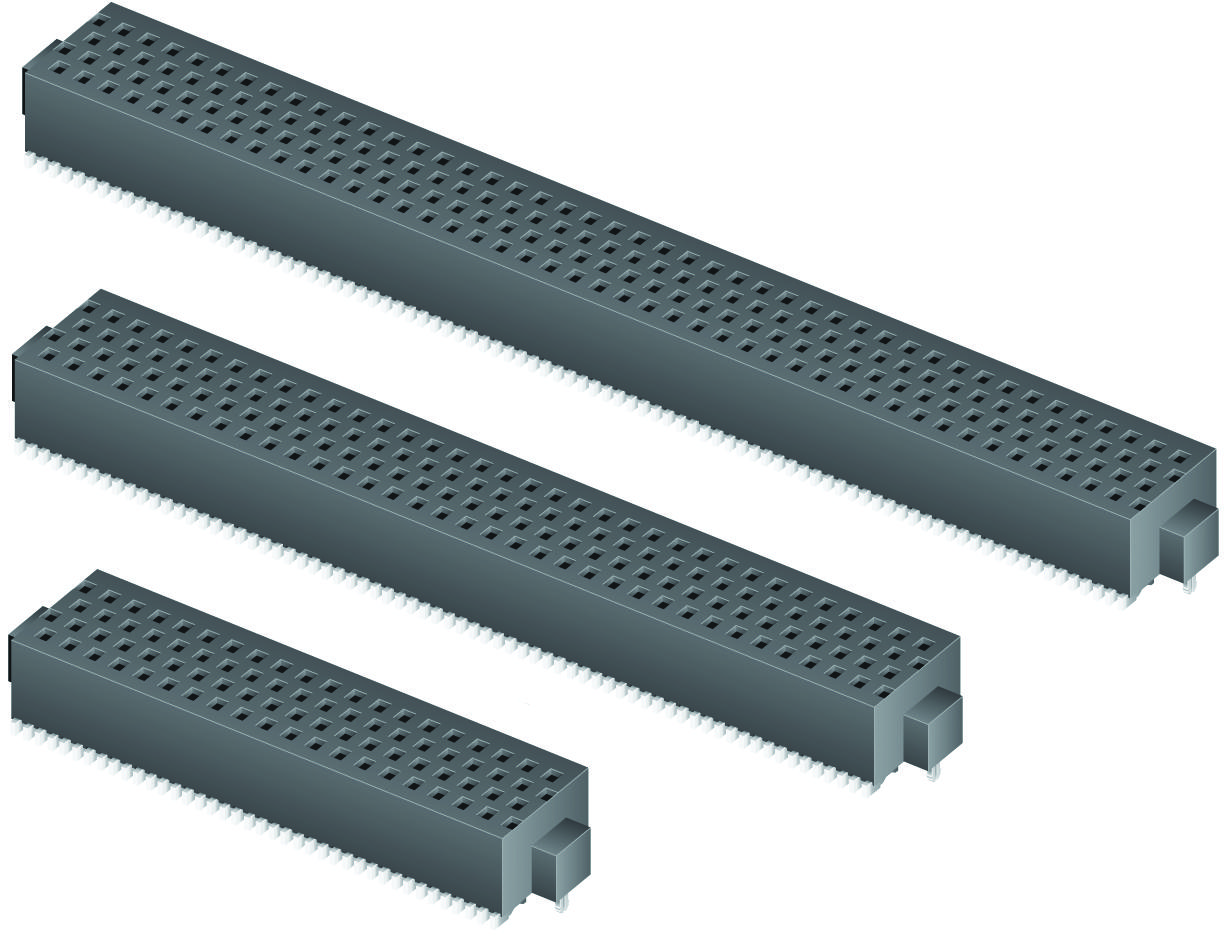

SAMTEC SOLC13502SQ Micro Rugged Connector
The SOLC series is a compact, surface-mount connector designed with a black liquid crystal polymer insulator and phosphor bronze contacts plated with gold over nickel. It supports current ratings up to 2.4A per pin, with high compatibility for micro rugged applications and PCB integration. Featuring a temperature range of 85°C to 125°C, low contact resistance of 10 milliohms, and a maximum cycle count of over 100, this connector is RoHS compliant and lead-free. Suitable for high-density, reliable electrical connections in demanding environments.
SAMTEC SOLC13502SQ Micro Rugged Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Au over 50 µm Ni
- Current Rating: 2.4A per pin
- Operating Temperature Range: 85°C to 125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: 1.68 mm to 3.61 mm
- Wipe Insertion Force: 2.0 oz (0.56 N)
- Normal Force: 75 grams (0.74 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: Over 100
- RoHS Compliant: Yes
- Processability: Lead-Free, Solderable
- Miniature Size: 1.27 mm pitch, various configurations
- Mounting: Surface Mount (SMT)
- Additional options: Locking Clips, Alignment Pins
- Compatibility: Drop-in replacement for FOLC/MOLC, compatible with TOLC
- Size variations: 2, 4, 6, 8, 10, 15, 20, 25 positions
Buy the Samtec SOLC – Reliable Micro Rugged Connectors for Industrial Applications
Enhance your electronic assembly with the Samtec SOLC micro rugged surface-mount connector. Designed with durable phosphor bronze contacts and gold plating, it offers excellent electrical performance and reliable connections. Suitable for compact, high-density applications, it supports 2.4A per pin and withstands over 100 mating cycles. Fully RoHS compliant and lead-free, this connector ensures your projects meet environmental standards. Get yours online today for swift delivery and seamless integration into your system designs.
Buy Samtec SOLC series connectors now and experience unmatched reliability and performance in high-density, demanding environments.
