SAMTEC SOLC14002SQ Surface Mount PCB Connector
The SOLC-140-02-F-Q-A features a rugged design with phosphor bronze contacts, gold over nickel plating, and a black liquid crystal polymer insulator for reliable PCB connections. It supports 2.4A per pin, is RoHS compliant, and offers high durability with over 100 mating cycles. Suitable for surface mount applications, it ensures precise alignment and easy solderability with lead-free processing. Its robust construction, high current capacity, and temperature tolerance from 85°C to 125°C make it ideal for demanding industrial and electronic applications requiring dependable interconnect solutions.
SAMTEC SOLC14002SQ Surface Mount PCB Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Au over 50 um Ni
- Insulator Material: Black Liquid Crystal Polymer
- Current Rating: 2.4A per pin
- Temperature Range: 85°C to 125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 1.68 mm to 3.61 mm
- Insertion Force: 2.0 oz (0.56 N)
- Normal Force: 75 grams (0.74 N)
- Withdrawal Force: 1.5 oz (0.42 N)
- Max Cycles: 100+
- RoHS Compliant: Yes
- Processing: Lead-Free, Solderable
- SMT Lead Coplanarity: Max 0.10 mm (0.004 inches), 0.15 mm (0.006 inches)
- Dimensions: 1.27 mm pitch, 2-6 positions, suitable for drop-in replacement with lock clips and alignment pins

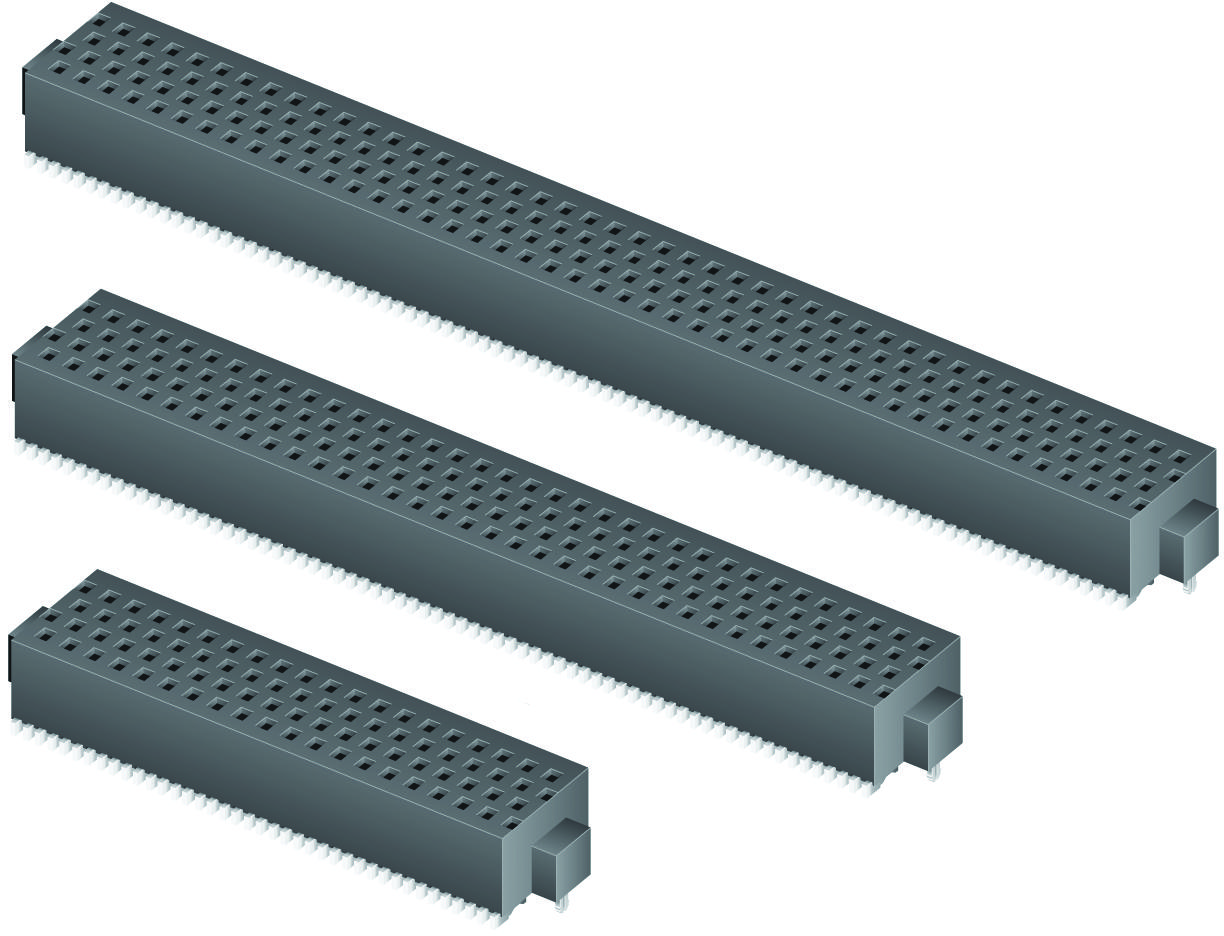

Buy the Samtec SOLC14002U– Reliable PCB Connector for Industrial Applications
Order the Samtec SOLC-140-02-F-Q-A online today—the connector designed for high reliability and durability in industrial and electronic applications. Featuring phosphor bronze contacts with gold over nickel plating, it ensures excellent electrical performance and resistance to corrosion. Its robust black liquid crystal polymer insulator offers high-temperature tolerance and stability. Suitable for surface mount technology, it supports over 100 mating cycles, easy soldering, and precise alignment, making it ideal for demanding PCB assemblies. Purchase now for consistent, high-quality connectivity solutions.
Get Samtec SOLC14002 today—built for precision and long-lasting durability in demanding PCB interconnects.
Frequently Asked Questions
Where can I buy SAMTEC SOLC14002SQ?
You can click on the BUY or RFQ button to purchase SOLC14002SQ from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SOLC14002SQ?
You can download the SOLC14002SQ datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SOLC14002SQ?
SAMTEC
