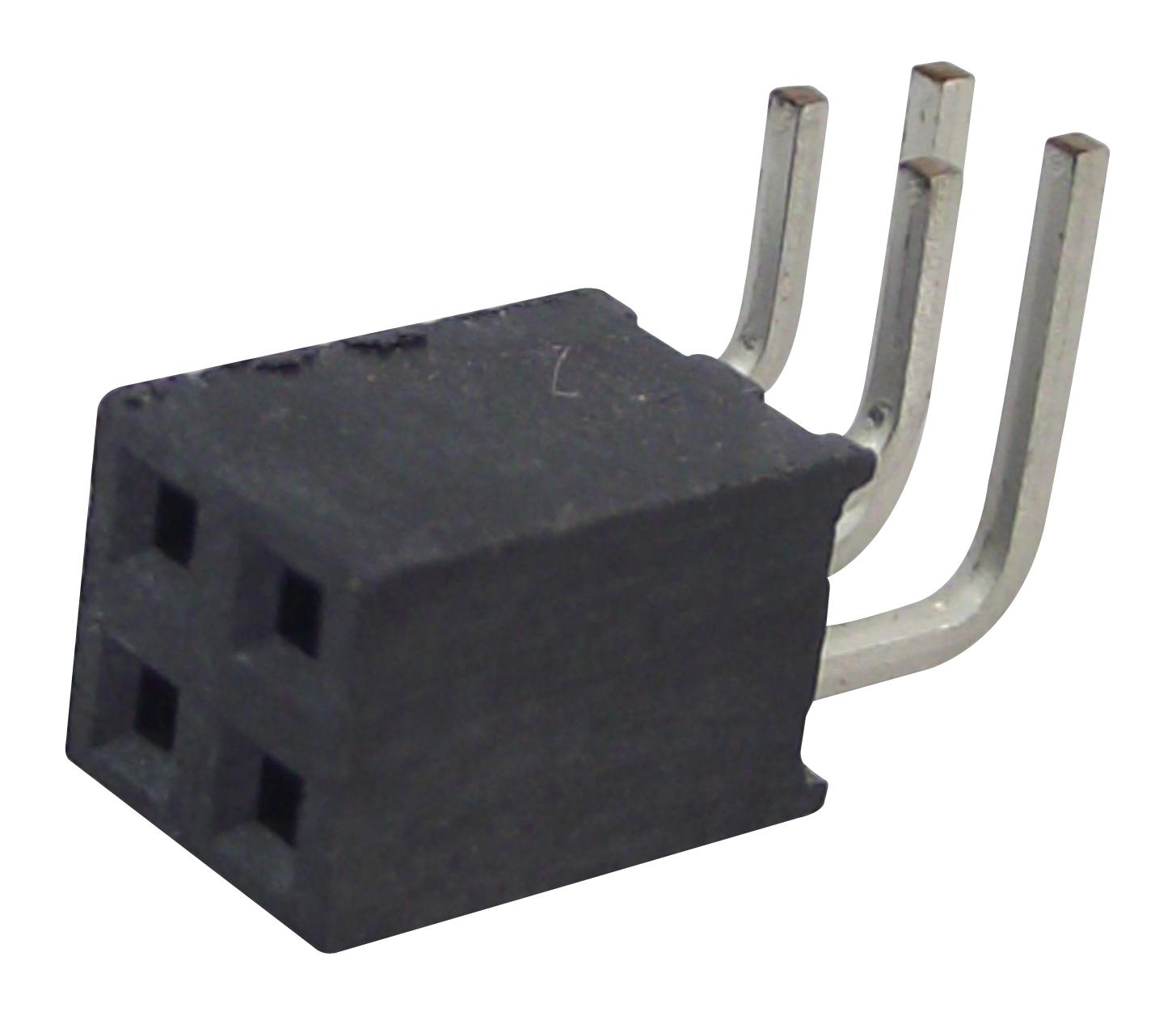

SAMTEC SQT10201LDRA High-Rel Connector
The product is a high-reliability electrical connector featuring Phosphor Bronze contacts with Sn or Au plating over Ni, rated for 450 VAC and operating from -55°C to +125°C. Constructed with liquid crystal polymer insulation, it supports up to 100 mating cycles, with a contact resistance of 10 mΩ. Designed for vertical and right-angle mounting, it offers an insertion depth of 2.62 mm to 5.03 mm, with an average insertion force of 1.11 N. RoHS compliant and lead-free, suitable for demanding electronic applications requiring durability and precision.
SAMTEC SQT10201LDRA High-Rel Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 5.1A per pin
- Voltage Rating: 450 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10mΩ
- Insertion Depth: 2.62 mm to 5.03 mm
- Insertion Force: 1.11 N (average)
- Normal Force: 0.59 N (average)
- Withdrawal Force: 0.83 N (average)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Buy Samtec SQT Series Part Number SQT10201LDRA Online
Purchase the high-rel connector online to experience the reliability and durability essential for demanding electronic projects. With features like high current rating, RoHS compliance, and lead-free construction, this connector ensures optimal performance in various environments. Its construction with phosphor bronze contacts and liquid crystal polymer insulation guarantees long-term stability and precise connections. Ideal for vertical and right-angle mounting in electronic assemblies, this product supports up to 100 mating cycles and operates safely within a temperature range of -55°C to +125°C. Buy now for fast delivery and verified quality.
Order your Samtec Series SQT10201LDRA today and ensure reliable, high-performance electronic connections for demanding applications.
