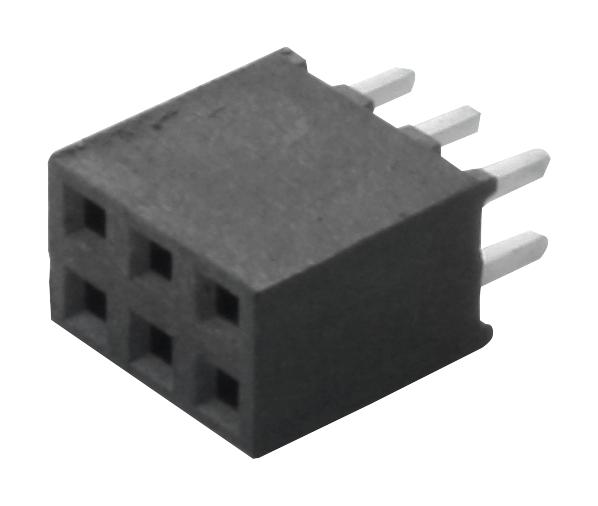

SAMTEC SQT10301LD Electronic Connector
This precision electronic connector features a black liquid crystal polymer insulator material and phosphor bronze contacts plated with tin or gold over nickel. It supports a voltage rating of 450 VAC and a current rating of 5.1 Amperes per pin with a temperature range from -55°C to +125°C. The connector is RoHS compliant, lead-free, and ensures reliable connections with low contact resistance of 10 milliohms. Designed for vertical and right-angle mounting, it offers an insertion depth of 2.62 to 5.03 mm, with an average insertion force of 1.11 N and a withdrawal force of 0.83 N, rated for up to 100 cycles.
SAMTEC SQT10301LD Electronic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u
- Voltage Rating: 450 VAC
- Current Rating: 5.1 Amperes per pin
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 milliohms
- Insertion Depth: 2.62 mm to 5.03 mm
- Insertion Force: 402 (1.11 N) average
- Withdrawal Force: 3.07 (0.83 N) average
- Max Cycles: 100
- RoHS compliant: Yes
- Lead-Free Solderable: Yes
Buy the Buy Samtec SQT Part Number SQT10301LD Online
Upgrade your assembly with this high-quality electronic connector, featuring liquid crystal polymer insulation and phosphor bronze contacts plated with gold or tin. It supports up to 450 VAC and 5.1 A per pin, suitable for demanding applications. RoHS compliant and lead-free, it ensures safety and environmental standards. Its robust design provides low contact resistance, easy installation with insertion depths from 2.62 to 5.03 mm, and reliable operation over 100 cycles. Ideal for vertical and right-angle mounting in complex electronics systems.
Get Samtec SQT10301LD today—designed for reliable electronic connections and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SQT10301LD?
You can click on the BUY or RFQ button to purchase SQT10301LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT10301LD?
You can download the SQT10301LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT10301LD?
SAMTEC
