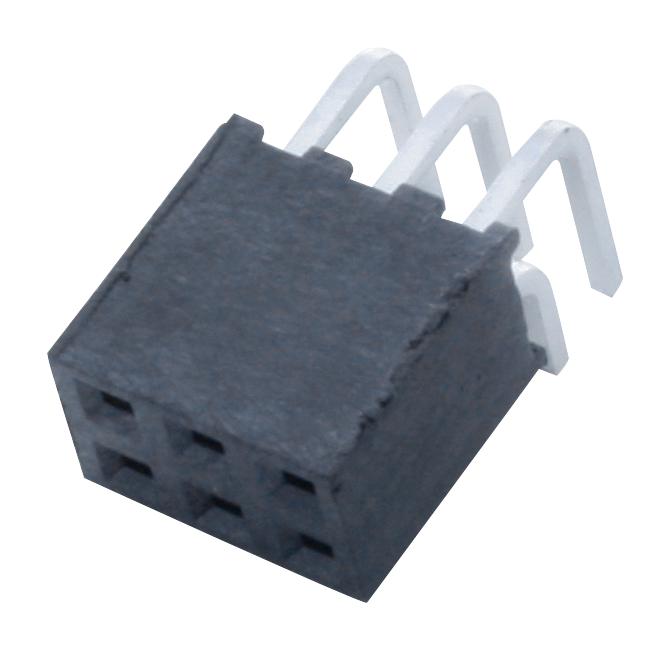

SAMTEC SQT10301LDRA High-Density Connector
The SQT series features high-density vertical and right-angle connectors made with black liquid crystal polymer insulators and phosphor bronze contacts plated with tin or gold over nickel. Rated for 450 VAC and current of 5.1A per pin, these connectors operate within -55°C to +125°C. They provide low contact resistance of 10mΩ, with insertion depths from 2.62 mm to 5.03 mm, and are RoHS compliant and lead-free. Suitable for applications requiring reliable electrical performance and durability in compact configurations.
SAMTEC SQT10301LDRA High-Density Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 5.1A per pin
- Voltage Rating: 450 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10mΩ
- Insertion Depth: 2.62 mm to 5.03 mm (0.103" to 0.198")
- Insertion Force: 402 (1.11 N)
- Normal Force: 60 grams (0.59 N)
- Withdrawal Force: 3.07 (0.83 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
Buy the Samtec Series SQT: SQT-107-02-L-S
Discover the versatile high-density connector designed with durable phosphor bronze contacts and liquid crystal polymer insulators for optimal electrical performance. Rated at 450 VAC and 5.1A per pin, it operates efficiently within -55°C to +125°C, providing low contact resistance of 10mΩ. Suitable for demanding electronic assemblies, it features insertion depths from 2.62 mm to 5.03 mm, RoHS compliance, and lead-free solderability. Perfect for compact, reliable connections in industrial and consumer electronics, ensuring longevity and safety in your designs.
Order your Samtec Series SQT SQT-107-02-L-S high-density connectors today and ensure reliable, compact connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SQT10301LDRA?
You can click on the BUY or RFQ button to purchase SQT10301LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT10301LDRA?
You can download the SQT10301LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT10301LDRA?
SAMTEC
