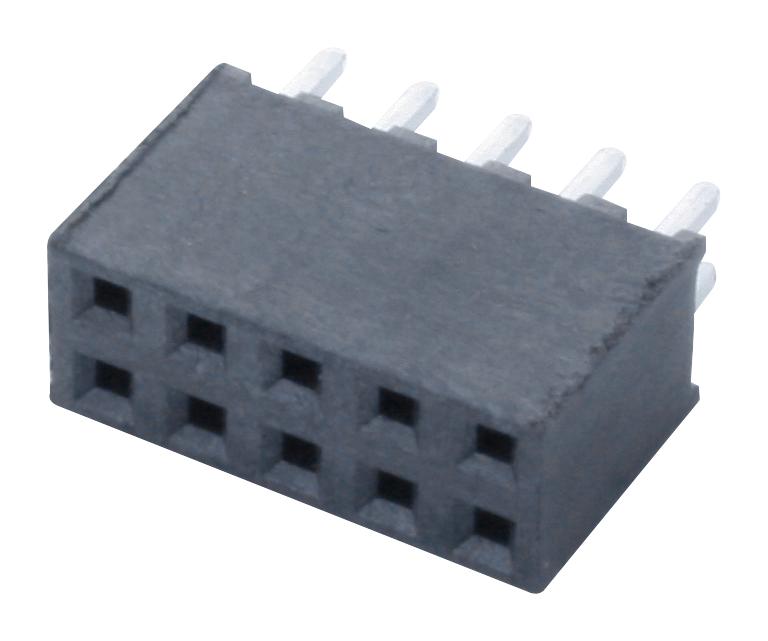

SAMTEC SQT10501LD industrial connector
The SQT-105-01-L-D is a high-reliability vertical and right-angle connector featuring phosphor bronze contacts with Sn or Au plating over a 50μ
SAMTEC SQT10501LD industrial connector Specifications:
- Material: Black Liquid Crystal Polymer insulator
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50μ" Ni
- Current Rating: 5.1 A per pin
- Voltage Rating: 450 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10mΩ
- Insertion Depth: 2.62 mm to 5.03 mm
- Insertion Force: 402 (1.11 N)
- Normal Force: 60 grams (0.59 N)
- Withdrawal Force: 3.07 (0.83 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free: Yes
Buy the Samtec Series TMM: SQT-105-01-L-D
Discover the high-quality SQT-105-01-L-D connector designed for demanding industrial applications. Featuring phosphor bronze contacts with gold or tin plating, it offers excellent electrical performance and durability. Made from black liquid crystal polymer insulators, it supports temperatures from -55°C to +125°C and is RoHS compliant, ensuring eco-friendly manufacturing. Easy to insert and reliable, this connector withstands up to 100 cycles, making it ideal for automation systems and complex electronic devices. Purchase online today to ensure seamless installation and dependable connections.
Buy Samtec SQT-105-01-L-D now and experience unmatched reliability and performance in industrial connector solutions.
