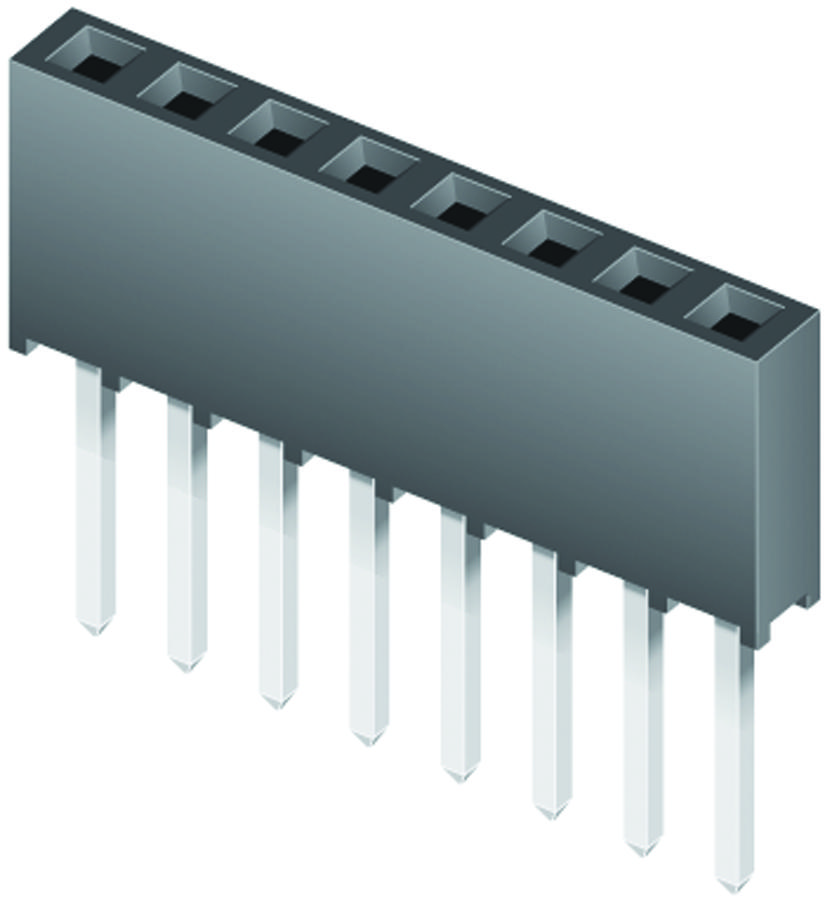

SAMTEC SQT10501LMS Board-to-Board Connector
The SQT series from Samtec features high-performance board-to-board connectors with a 2.00 mm pitch, constructed from phosphor bronze contacts with Sn or Au plating, and liquid crystal polymer insulators. These connectors support operating temperatures from -55 °C to +125 °C and are RoHS compliant, lead-free, and solderable. They offer up to 100 mating cycles, suitable for board, cable, and wire-to-board applications. Designed for various configurations, they ensure reliable electrical connection with a normal force of 60 grams per pin and voltage ratings up to 281 VAC, making them ideal for demanding electronic assemblies.
SAMTEC SQT10501LMS Board-to-Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or AU over
- Current Rating: 5.1 Amperes per pin
- Voltage Rating: 281 VAC (with TMM), 250 VAC (with TMMH)
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: 0.103" to 0.198" (2.62mm to 5.03mm)
- Normal Force: 60 grams (0.59 N) per pin
- Max Cycles: 100 with gold plating
- RoHS Compliant and Lead-Free Solderable
Buy the Buy Samtec SQT Series Part Number SQT10501LMS Online
Purchase the Samtec SQT Series Board-to-Board Connector online today to experience high-quality, durable, and reliable electrical connections. With a 2.00 mm pitch, these connectors feature phosphor bronze contacts with optional gold plating, supporting up to 100 mating cycles. They operate between -55 °C and +125 °C and are RoHS compliant, lead-free, and solderable. Designed for precision and durability, they are ideal for demanding electronic assemblies requiring stable and efficient connectivity in compact spaces. Buy now to upgrade your electronic projects effortlessly.
Order your Samtec Series SQT10501LMS connector today and ensure reliable, high-performance electronic connections in your projects.
Frequently Asked Questions
Where can I buy SAMTEC SQT10501LMS?
You can click on the BUY or RFQ button to purchase SQT10501LMS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT10501LMS?
You can download the SQT10501LMS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT10501LMS?
SAMTEC
