SAMTEC SQT11001LS Connector Module
The SQT-107 series features vertical and right-angle connector options with high reliability and RoHS compliance. Made with liquid crystal polymer insulators and phosphor bronze contacts, these connectors support up to 5.1A current rating and 450 VAC voltage with gold or tin plating over nickel. They operate from -55°C to +125°C, maintain low contact resistance of 10mΩ, and are rated for up to 100 mating cycles. Designed for applications requiring durable, high-performance connections in electronic systems.
SAMTEC SQT11001LS Connector Module Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u
- Maximum Cycles: 100 with Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10mΩ
- Insertion Depth: 2.62 mm to 5.03 mm
- Insertion Force: 1.11 N (average, single contact)
- Normal Force: 60 grams (0.59 N)
- Withdrawal Force: 0.83 N (average, single contact)

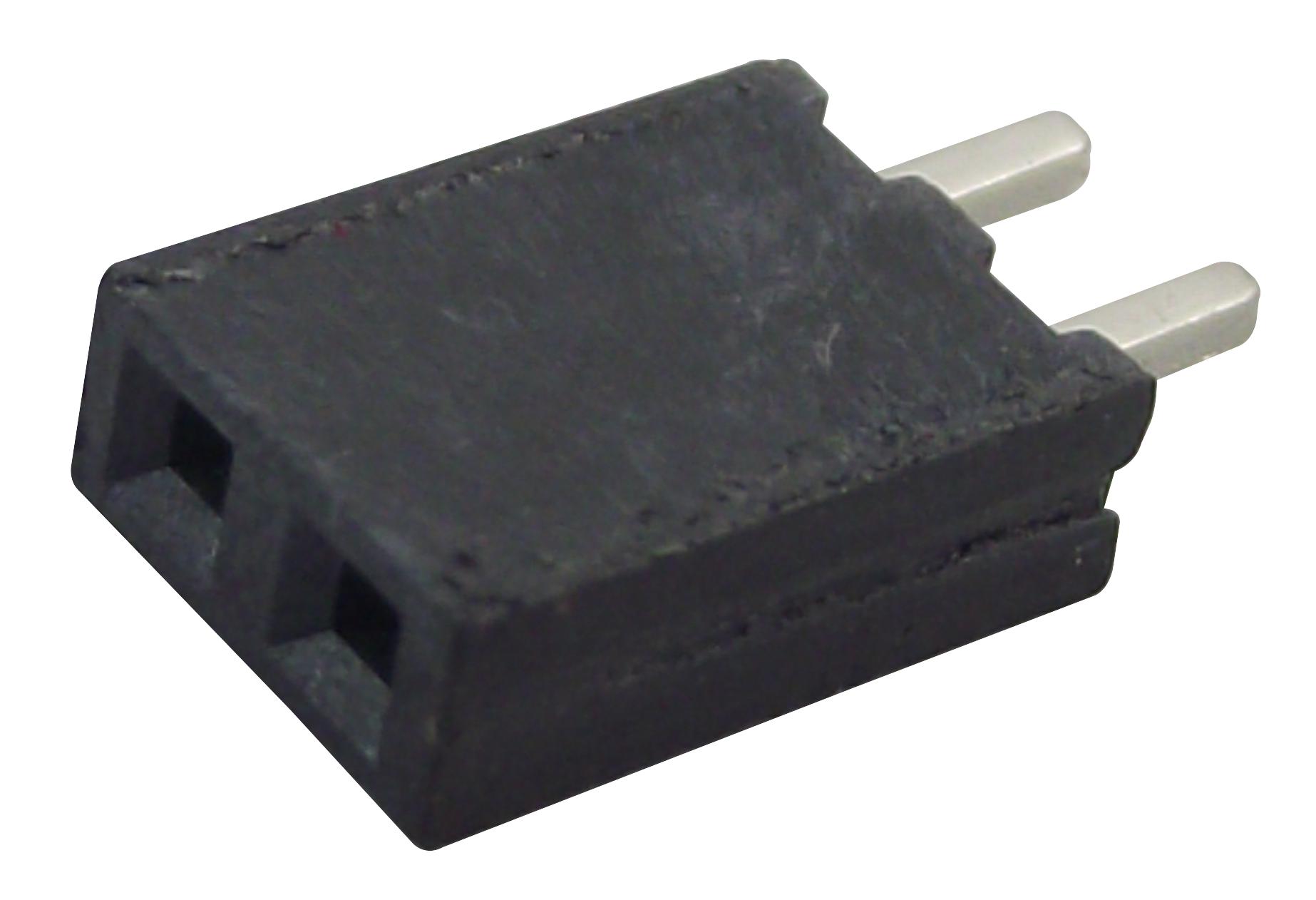

Buy the Samtec Series SQT: Connectivity Component for Reliable Electronic Connections
Secure your electronic connection needs with the high-performance connector module available online. Designed with durable liquid crystal polymer insulators and corrosion-resistant phosphor bronze contacts, it offers excellent electrical performance and temperature resilience from -55°C to +125°C. RoHS compliant, lead-free, and rated for 100 mating cycles, this connector ensures long-term durability. Easy to install and versatile for various applications, buy online now for fast delivery and reliable performance in your electronic systems.
Buy Samtec SQT-107-02-L-S now and experience unmatched reliability and performance in electronic connector solutions.
