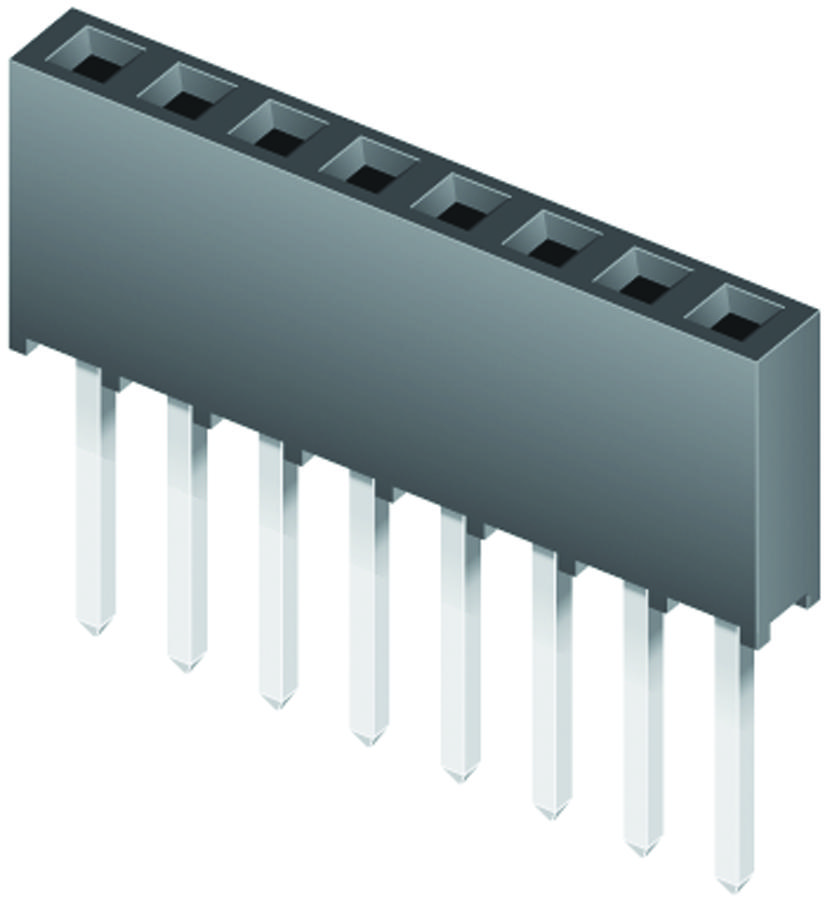

SAMTEC SQT11101LMS Board-to-Board Connector
This is a high-quality, compact board-to-board connector designed for versatile electronic applications. Made with black liquid crystal polymer insulators and phosphor bronze contacts, it features gold or tin plating over nickel for reliable connectivity. With an operating temperature range from -55°C to +125°C, it supports up to 100 cycles, enabling durability in demanding environments. Suitable for vertical and right-angle mounting, it offers a 2.00 mm pitch, low profile design, and RoHS compliance. Ideal for use in dense electronic assemblies requiring a stable, high-performance electrical connection.
SAMTEC SQT11101LMS Board-to-Board Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 μ" Ni
- Voltage Rating: 281 VAC with TMM; 250 VAC with TMMH
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 0.103" to 0.198" (2.62 mm to 5.03 mm)
- Normal Force: 60 grams (0.59 N) avg.
- Max Cycles: 100 with 10 μ" Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Number of Positions: 6.35 mm pitch, certain styles non-standard
- Mounting: Vertical and right-angle options available
- Dimensions: Pitch 2.00 mm, low profile design, contact height varies with style
Buy the Samtec Series SQT: 2.00 mm pitch Board-to-Board Connector
Purchase the Samtec Series SQT board-to-board connector online today to benefit from its durable design, high cycle life, and excellent electrical performance. Engineered with black liquid crystal polymer insulators and phosphor bronze contacts, it supports up to 100 mating cycles and operates effectively from -55°C to +125°C. Its compact low-profile design with a 2.00 mm pitch makes it ideal for dense electronic assemblies. RoHS compliant and lead-free, ensuring safety and environmental standards are met. Secure your supply of this reliable connector now.
Order your Samtec Series SQT 11101LMS connector today and ensure reliable, high-quality electrical connections in your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SQT11101LMS?
You can click on the BUY or RFQ button to purchase SQT11101LMS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT11101LMS?
You can download the SQT11101LMS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT11101LMS?
SAMTEC
