SAMTEC SQT11701LD High-Performance Connector
The product is a high-reliability, low-profile connector series featuring black liquid crystal polymer insulators and phosphor bronze contacts plated with Sn or Au over Ni. Designed for 450 VAC rated applications, it supports an operating temperature range of -55°C to +125°C, with a contact resistance of 10 mΩ. Suitable for horizontal insertion, it offers a withdrawal force of approximately 40 oz, and a solderable, lead-free design with matte tin finish on tails for secure connections. Ideal for compact electronic assemblies requiring durable, high-performance connections.
SAMTEC SQT11701LD High-Performance Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50µ" Ni
- Voltage Rating: 450 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Withdrawal Force: approximately 40 oz
- Solderability: Lead-Free Solderable
- Finish: Matte Tin on tails
- Insertion Depth: Horizontal insertion
- Max Current Rating: 5.1 A per contact
- Weight: 60 grams (average non-returnable)
- Dimensions: Compatible with various mounting styles and pitch sizes

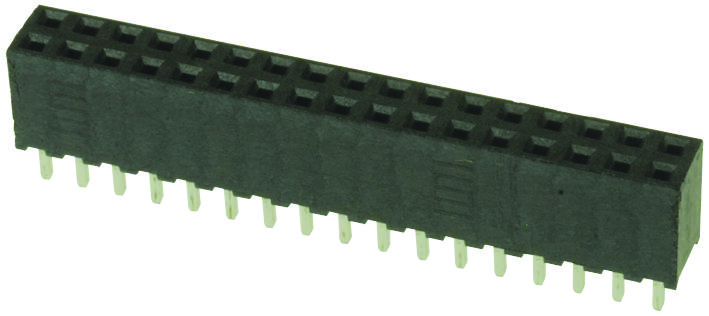

Buy the Samtec Series SQT: High-Performance Connector SQT-117-01-1
Discover the durable and reliable high-performance connector designed for demanding electronic applications. Featuring a liquid crystal polymer insulator and phosphor bronze contacts with lead-free, matte tin finish, this connector offers excellent electrical performance up to 450 VAC and operates efficiently from -55°C to +125°C. Its compact design provides secure horizontal insertion, supporting high current ratings with low contact resistance. Whether for industrial or consumer electronics, order this connector online today to benefit from quality, ease of installation, and long-term reliability, ensuring your project’s success.
Order your Samtec Series SQT-117-01-1 connector today and ensure reliable, durable connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SQT11701LD?
You can click on the BUY or RFQ button to purchase SQT11701LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT11701LD?
You can download the SQT11701LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT11701LD?
SAMTEC
