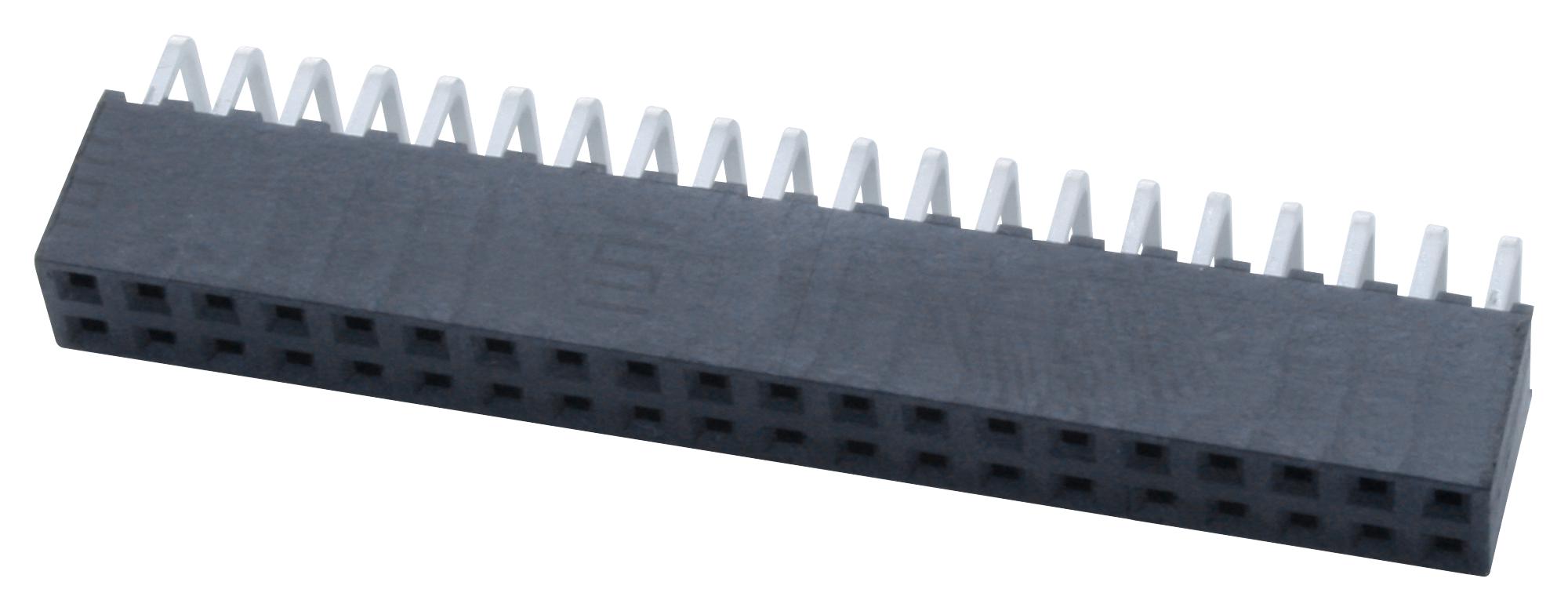

SAMTEC SQT12001LDRA Socket Connector
The product is a high-reliability, RoHS-compliant socket connector with black liquid crystal polymer insulators and phosphor bronze contacts. Featuring gold or tin plating over nickel, this connector supports a voltage rating of 450 VAC and a current of 5.1 amperes per pin. It operates within -55°C to +125°C, with contact resistance of 10 mΩ, and is designed for up to 100 mating cycles. Suitable for industrial automation, it offers reliable performance in demanding environments with various lengths and optional lead plating.
SAMTEC SQT12001LDRA Socket Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 5.1A per pin
- Voltage Rating: 450 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10mΩ
- Insertion Depth: 2.62 mm to 5.03 mm
- Insertion Force: 1.11 N (average)
- Normal Force: 0.59 N (average)
- Withdrawal Force: 0.83 N (average)
- Max Cycles: 100
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Surface Finish: Matte Tin, Gold options
Buy the Samtec SQT-107-02-L-S – Reliable Connector for Industrial Applications
Purchase the Samtec SQT-107-02-L-S socket connector online today and ensure optimal connection reliability for your industrial projects. This high-quality connector features a robust design with a liquid crystal polymer insulator and phosphor bronze contacts, providing excellent performance in demanding environments. With up to 100 mating cycles, exceptional temperature range from -55°C to +125°C, and RoHS compliance, it’s an ideal choice for automation, electronics, and control systems. Get fast delivery and expert support when you buy now.
Buy Samtec SQT-107-02-L-S now and experience unmatched reliability and performance in industrial automation solutions.
Frequently Asked Questions
Where can I buy SAMTEC SQT12001LDRA?
You can click on the BUY or RFQ button to purchase SQT12001LDRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT12001LDRA?
You can download the SQT12001LDRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT12001LDRA?
SAMTEC
