SAMTEC SQT12201FS High-Density Micro Connector
The SQT series from Samtec features high-reliability connectors with phosphor bronze contacts, liquid crystal polymer insulators, and gold or tin plating. Designed for quick mating with multiple board and cable options, these connectors operate from -55°C to +125°C and support up to 5.1A current at 281VAC. Suitable for RoHS compliant applications, they are lead-free, solderable, and withstand up to 100 mating cycles. Available in various lengths and styles, these connectors are ideal for high-density, vibration-resistant connections in electronic assemblies.
SAMTEC SQT12201FS High-Density Micro Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or AU over
- Current Rating: 5.1 A at 281 VAC
- Voltage Rating: 281 VAC mated with TMM; 250 VAC mated with TMMH
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 2.62 mm (0.103") to 4.99 mm (0.198")
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100 with 10 µm (0.25 µm) Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Number of Rows: Up to six rows
- Dimensions and lengths vary with options, standard contact size 2.00 mm (.0787")
- Connector Styles: Board and cable mates, vertical and right-angle configurations
- Certifications: RoHS compliant, suitable for high-reliability electronic connections

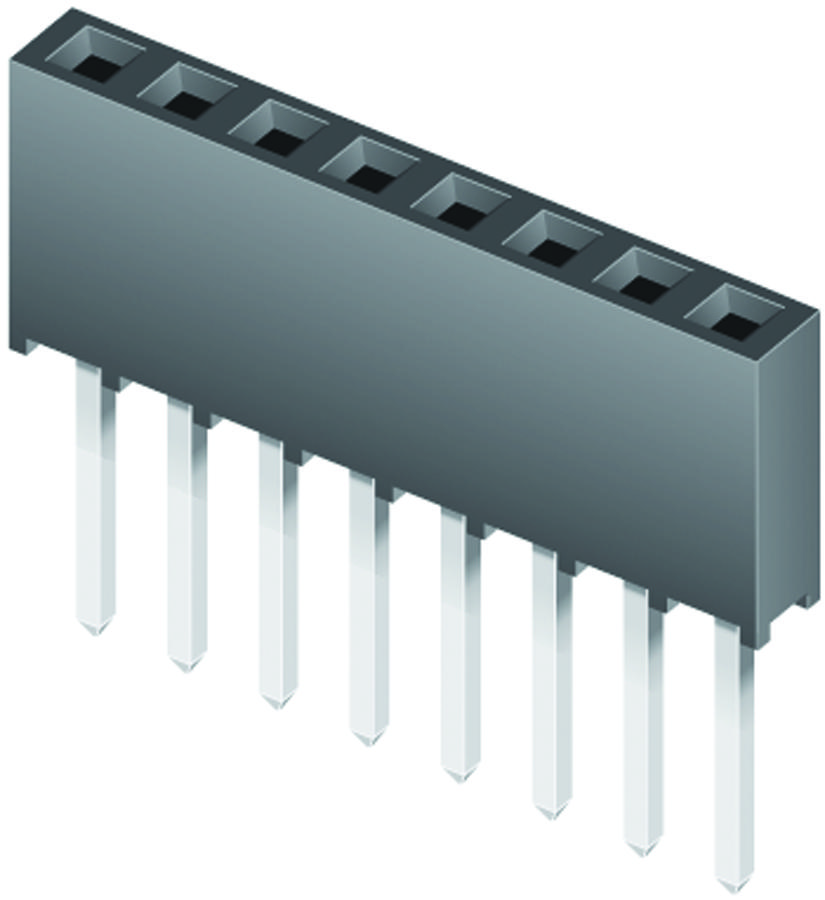

Buy the Buy Samtec SQT Series Part Number SQT12201FS Online
Order the Samtec SQT series micro connectors online today for durable, high-performance connections in electronic assemblies. These connectors feature phosphor bronze contacts and liquid crystal polymer insulators, offering excellent thermal stability and vibration resistance. Ideal for rugged environments, they support high-current ratings up to 5.1A at 281VAC, operate over a broad temperature range from -55°C to +125°C, and are RoHS compliant. With options for board and cable mating, vertical and right-angle orientations, these connectors are perfect for compact, high-reliability electronic designs.
Get Samtec SQT12201FS today—built for high-density, vibration-resistant electronic applications with reliable contact performance and RoHS compliance.
Frequently Asked Questions
Where can I buy SAMTEC SQT12201FS?
You can click on the BUY or RFQ button to purchase SQT12201FS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT12201FS?
You can download the SQT12201FS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT12201FS?
SAMTEC
