SAMTEC SQT13301FS Electrical Connector
The SQT series is a high-performance array connector featuring a black liquid crystal polymer insulator and phosphor bronze contacts with Sn or AU plating. Designed for PCB mounting, it supports voltages up to 281 VAC (mated with TMM) and 250 VAC (mated with TMMH). Operating temperature ranges from -55 °C to +125 °C, with a normal force of 60 grams and maximum of 100 cycles with 10 μm gold plating. Suitable for automation and electronic applications, it ensures durability and RoHS compliance for environmentally friendly manufacturing.
SAMTEC SQT13301FS Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or AU over
- Voltage Rating: 281 VAC mated with TMM, 250 VAC mated with TMMH
- Operating Temp Range: -55 °C to +125 °C
- Insertion Depth: 2.62 mm (.103"), 3.18 mm (.125")
- Normal Force: 60 grams (0.59 N)
- Max Cycles: 100 with 10 μm Au plating
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Current Rating: 5.1 A per pin
- Number of Rows: Up to six
- Dimensions: Compatible with various mounting options, supporting surface mounting and through-hole configurations

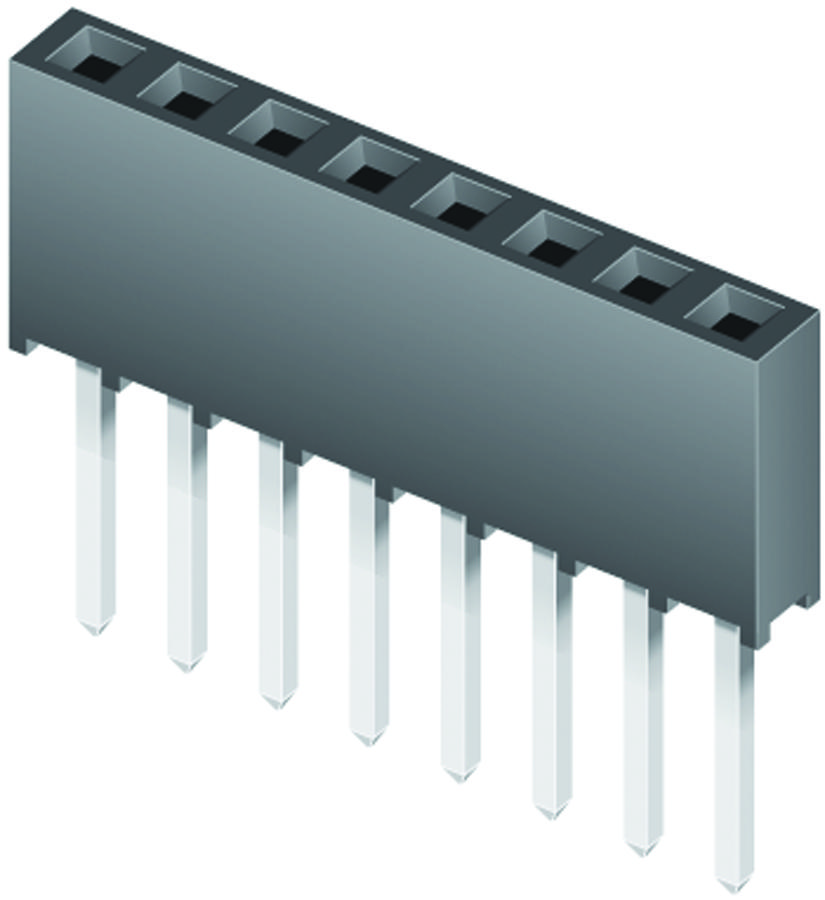

Buy the Samiec Series SQT: SQT13301FS
Purchase the Samiec SQT series connector online today to ensure reliable performance in electronic and automation systems. This compact connector features liquid crystal polymer insulator, phosphor bronze contacts, and gold or tin plating, supporting voltages up to 281 VAC and temperatures from -55 °C to +125 °C. Its durable design withstands 100 mating cycles with 10 μm gold plating, making it suitable for high-performance applications. Enjoy fast delivery, authorized sourcing, and expert support to meet your project needs efficiently.
Get Samiec SQT13301FS today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy SAMTEC SQT13301FS?
You can click on the BUY or RFQ button to purchase SQT13301FS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT13301FS?
You can download the SQT13301FS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT13301FS?
SAMTEC
