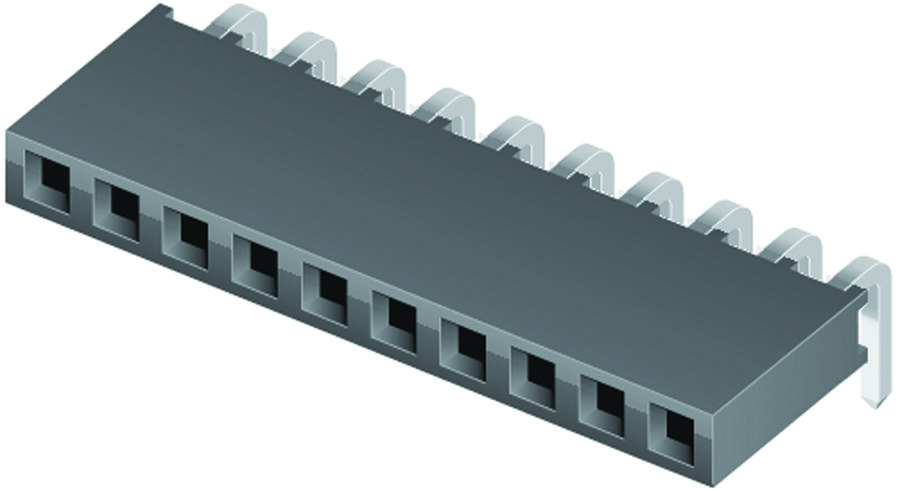

SAMTEC SQT13801FSRA High-Density Connectors
The SQT Series from Samtec features high-reliability, miniature connectors with a 2.00 mm pitch, ideal for compact electronic assemblies. Constructed with phosphor bronze contacts and liquid crystal polymer insulators, these connectors support operating temperatures from -55°C to +125°C. They offer RoHS compliance, lead-free solderability, and up to 100 mating cycles with gold or tin plating for durability. Suitable for vertical and right-angle board mounts, these connectors are used in high-density applications requiring precise, robust interconnections in industrial, automation, and electronic manufacturing environments.
SAMTEC SQT13801FSRA High-Density Connectors Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ
- Ni
- Current Rating: 5.1 A per pin
- Voltage Rating: 281 VAC mated with TMM; 250 VAC mated with TMMH
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.30 mm (.103 inches) to 5.03 mm (.198 inches)
- Normal Force: 60 grams (0.59 N) average
- Max Cycles: 100 with 10 µ
- Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mounting Style: Vertical and right-angle options
- Design Flexibility: Multiple row options with non-standard, non-returnable lengths
Buy the Buy Samtec SQT Series Part Number SQT13801FSRA Online
Order the Samtec SQT Series connectors online for your electronic assembly projects. These high-quality, compact connectors feature a 2.00 mm pitch, phosphor bronze contacts, and liquid crystal polymer insulators for durability and stability across operating temperatures from -55°C to +125°C. RoHS compliant and lead-free, they support up to 100 mating cycles with optional gold or tin plating, ensuring long-lasting performance. Available in vertical and right-angle configurations, these connectors are suitable for high-density professional applications, enabling efficient, reliable connections in industrial, automation, and electronics manufacturing.
Get Samtec SQT13801FSRA today—designed for high-density, reliable electronic interconnections with long-lasting durability and RoHS compliance.
Frequently Asked Questions
Where can I buy SAMTEC SQT13801FSRA?
You can click on the BUY or RFQ button to purchase SQT13801FSRA from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT13801FSRA?
You can download the SQT13801FSRA datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT13801FSRA?
SAMTEC
