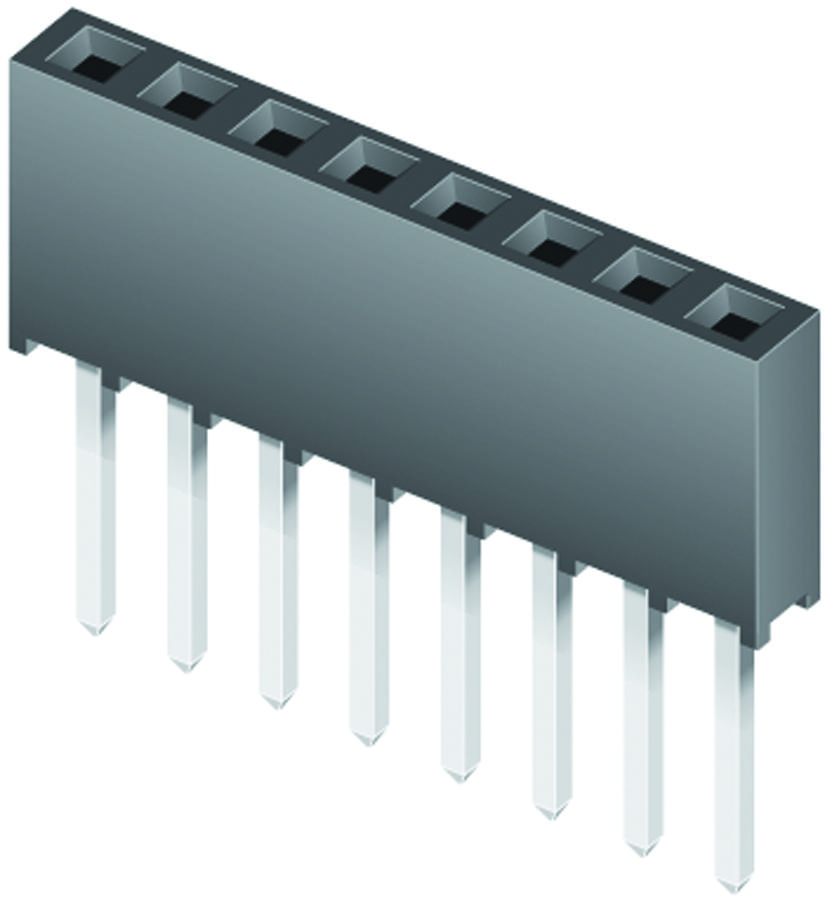

SAMTEC SQT14001FS Board-to-Board Connector
The SQT series connector from Samtec features a 2.00 mm pitch, with robust phosphor bronze contacts plated with tin or gold over nickel. Created with black liquid crystal polymer insulators, it supports operating temperatures from -55°C to +125°C, with a maximum of 100 mating cycles. Designed for reliable board-to-board connections, it accommodates up to six rows, offers various mounting styles, and is RoHS compliant, lead-free, and solderable. Ideal for industrial and electronics applications requiring durable, high-temperature performance and versatile connection options.
SAMTEC SQT14001FS Board-to-Board Connector Specifications:
- Pitch: 2.00 mm (.0787 inch)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50 µ" (1.27 µm) Ni
- Current Rating: 5.1 A per pin
- Voltage Rating: 281 VAC mated with TMM; 250 VAC mated with TMMH
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 3.05 mm to 4.99 mm (.103 inch to .198 inch)
- Normal Force: 60 grams (0.59 N) average
- Maximum Cycles: 100 with 10 µ" (0.25 µm) Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Mounting Styles: Vertical, right-angle
- Number of Rows: Up to six
- Environmental Resistance: Subjection to change without notice; meets industry standards
Buy the Samtec SQT14001FS – Reliable Board-to-Board Connectors for Industrial Applications
Enhance your electronic assemblies with the Samtec SQT series board-to-board connector, featuring a 2.00 mm pitch, durable phosphor bronze contacts, and RoHS compliance. Designed for high temperatures from -55°C to +125°C, it supports up to 100 mating cycles and is available in various mounting styles, including vertical and right-angle options. This solderable, lead-free connector ensures reliable performance in demanding industrial environments. Order online today to secure high-quality, versatile connections ideal for a wide range of electronic and industrial projects.
Order your Samtec Series SQT14001FS connector today and give your projects the dependable, high-performance connection they deserve for industrial use.
