SAMTEC SQT14701FS Electrical Connector
The SQT series from Samtec features high-performance connectors with black Liquid Crystal Polymer insulators and phosphor bronze contacts. These connectors can handle voltage ratings up to 281 VAC when mated with TMM and TMMH series. They operate across temperatures from -55 °C to +125 °C and support up to 100 cycles with gold plating for durability. Suitable for both board and cable applications, these RoHS-compliant, lead-free connectors are ideal for high-reliability electronic assemblies requiring precise pin alignments and multiple configurations.
SAMTEC SQT14701FS Electrical Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or AU over
- Current Rating: 5.1 Amperes per pin
- Voltage Rating: 281 VAC mated with TMM; 250 VAC with TMMH
- Operating Temperature: -55 °C to +125 °C
- Insertion Depth: 0.103" to 0.198" (2.62 mm to 5.03 mm)
- Normal Force: 60 grams (0.59 N) average
- Max Cycles: 100 with 10 µin (0.25 µm) Au
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes
- Compatible with various board and cable mates such as TMM, TMMH, MTMM, TW, ZLTMM, and others
- Surface Mount Design, Multiple Row Options, Contact spacing 2.00 mm (.0787 inch)

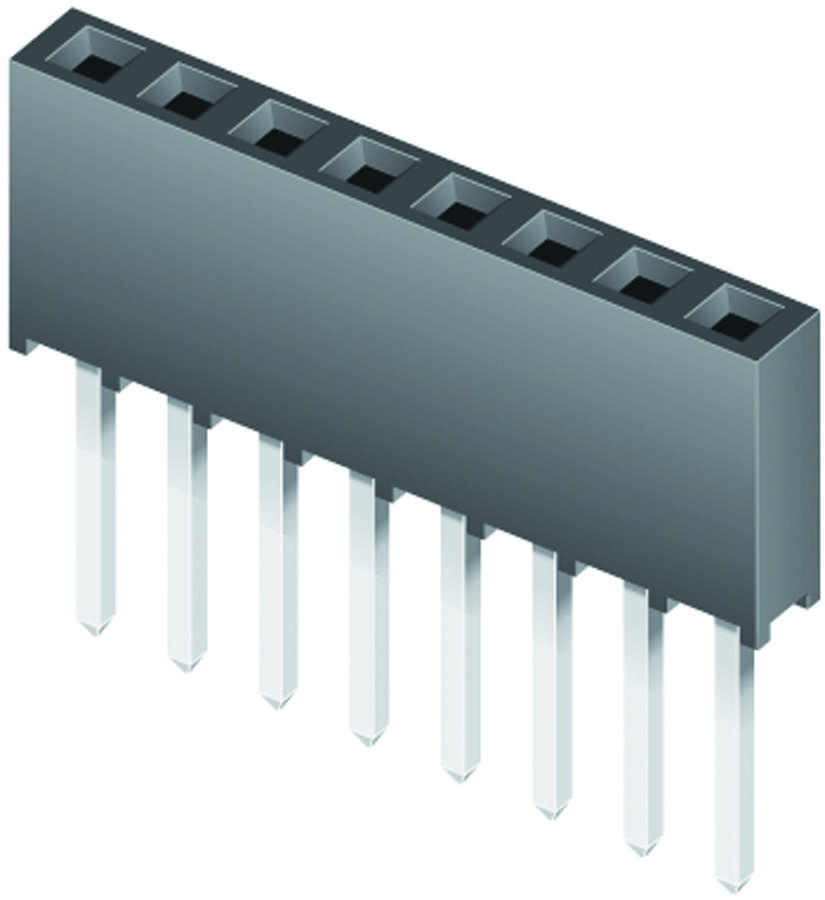

Buy the Buy Samtec SQT Series Part Number SQT14701FS Online
Secure your electronic project with the Samtec SQT series connector, offering excellent electrical performance with high-voltage ratings, temperature tolerance from -55°C to +125°C, and RoHS compliance. Designed for durability and multiple cycle uses, this connector ensures a reliable connection in both board and cable configurations. Its precise dimensions support easy integration, making it ideal for high-reliability electronic assemblies. Order online today and elevate your electronic connectivity with trusted quality and performance.
Buy Samtec SQT14701FS now and experience unmatched reliability and high-performance connections suitable for demanding electronic applications.
Frequently Asked Questions
Where can I buy SAMTEC SQT14701FS?
You can click on the BUY or RFQ button to purchase SQT14701FS from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQT14701FS?
You can download the SQT14701FS datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQT14701FS?
SAMTEC
