SAMTEC SQW10201FMD Rugged socket
The rugged, cost-effective socket series offers options from two to six rows, designed for reliable PCB connections with high current capacity of 3.8 A per pin, suitable for surface mount or through-hole applications. Made from phosphor bronze contact material with Sn or Au plating, these sockets are RoHS compliant and support operating voltages up to 281 VAC. Their compact design features an insertion depth of 0.787 inches and a pitch of 0.198 inches, providing versatile solutions for electronic assemblies requiring durability, compliance, and efficient mounting.
SAMTEC SQW10201FMD Rugged socket Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over contact
- Voltage Rating: 281 VAC mated with TMM; 250 VAC with TMMH
- Operating Temp Range: Not specified
- Insertion Depth: 0.787 inches (2.62 mm)
- Pitch: 0.198 inches (5.03 mm)
- Number of Positions: Minimum of 5, up to 28
- RoHS Compliant: Yes
- Surface Mount or Through-Hole: Yes, options available
- Lead-Free Solderable: Yes, for -D & -D variants

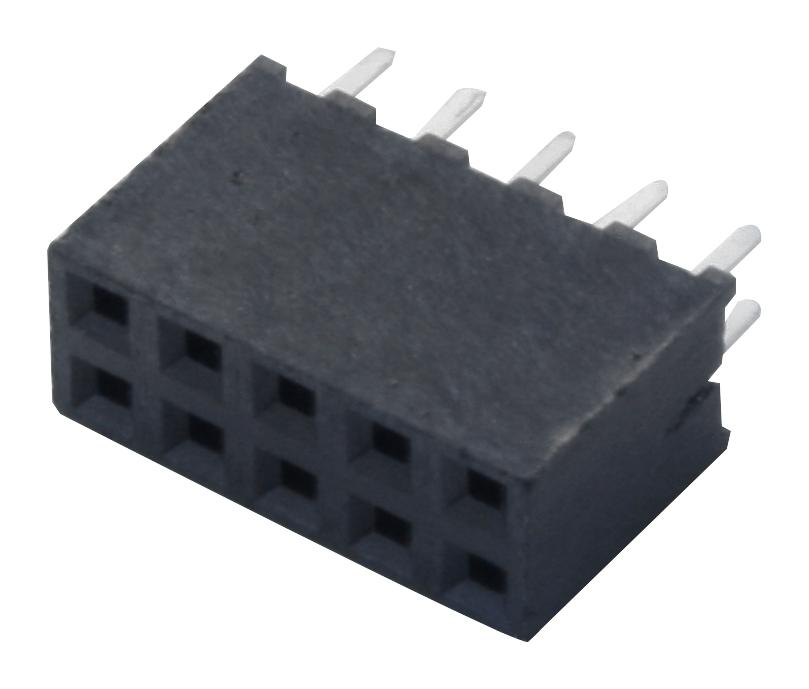

Buy the Buy Samtec Cost-Effective Rugged Sockets Part Number SQW10201FMD Online
Experience reliable and durable PCB connections with the rugged socket series, offering versatile mounting options from surface mount to through-hole. Designed with high-quality phosphor bronze contacts and available with Sn or Au plating, these sockets support high voltages up to 281 VAC and currents of 3.8 A per pin, ensuring efficiency and safety in electronic assemblies. With a compact design, multiple row options, RoHS compliance, and easy soldering, this cost-effective solution is ideal for demanding industrial and electronic applications requiring precision, durability, and compliance.
Get Samtec SQW10201FMD today—built for durability, high current capacity, and reliable PCB connections.
Frequently Asked Questions
Where can I buy SAMTEC SQW10201FMD?
You can click on the BUY or RFQ button to purchase SQW10201FMD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW10201FMD?
You can download the SQW10201FMD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW10201FMD?
SAMTEC
