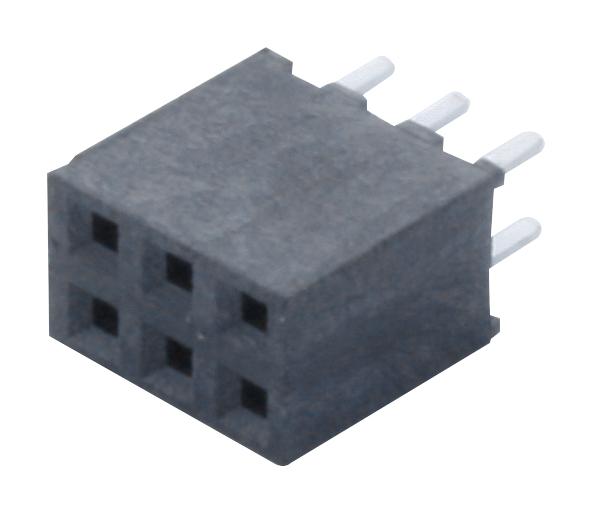

SAMTEC SQW10301LD Electrical Connector
The product is a high-performance electrical connector with a 2.00 mm pitch, constructed from black liquid crystal polymer insulator and phosphor bronze contact material. It features Sn or Au over 50 micrometers Ni plating, rated for 3.8 amps per pin and 500 VAC voltage, suitable for PCB mounting. Operating temperature ranges from -55°C to +125°C, with contact resistance of 10 milliohms. It supports up to 100 mating cycles, with a maximum insertion depth of 5.03 mm. RoHS compliant and lead-free, it offers reliable performance for industrial electronic connections.
SAMTEC SQW10301LD Electrical Connector Specifications:
- Pitch: 2.00 mm (.0787 inch)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.103 inch to 0.198 inch (2.62 mm to 5.03 mm)
- Max Cycles: 100 with 0.25 μm Au
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- MT Lead Coplanarity: 0.15 mm max
Buy the Samtec SQW10301LD – Reliable PCB Connector for Industrial Applications
Order the Samtec SQW10301LD online today and benefit from a high-quality PCB connector with a 2.00 mm pitch, rated for 3.8 amps and 500 volts. Designed with durable phosphor bronze contacts and RoHS compliance, it guarantees reliable performance in industrial environments. Its lead-free, solderable construction and up to 100 mating cycles make it ideal for demanding electronic assemblies. Enhance your manufacturing process by purchasing this versatile connector online, ensuring fast delivery and consistent, high-quality connection solutions for your projects.
Buy Samtec SQW10301LD now and ensure robust electrical connections with high current and voltage ratings, perfect for industrial electronic systems.
Frequently Asked Questions
Where can I buy SAMTEC SQW10301LD?
You can click on the BUY or RFQ button to purchase SQW10301LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW10301LD?
You can download the SQW10301LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW10301LD?
SAMTEC
