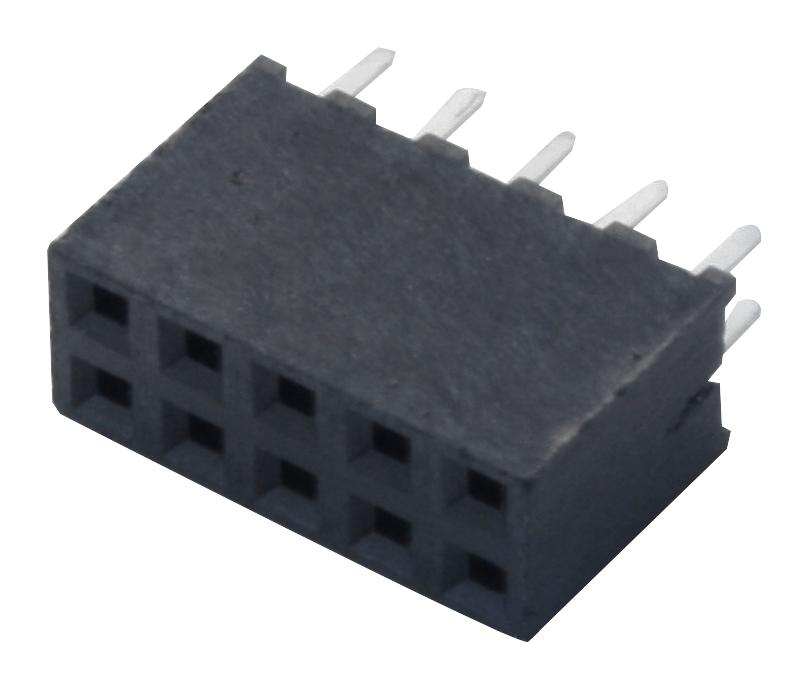

SAMTEC SQW10501LD003 High-Density PCB Socket
The rugged high-density socket offers a cost-effective, durable solution for PCB connections, available in multiple rows from two to six. Made with phosphor bronze contacts and liquid crystal polymer insulators, it supports surface-mount or through-hole mounting options. Rated for 281 VAC with TMM and 250 VAC with TMMH, it withstands operating temperatures up to a specified maximum. The socket is RoHS compliant, lead-free, and features optional gold or tin plating. Its precise insertion depth and varied pin counts make it versatile for high-performance electronic assemblies.
SAMTEC SQW10501LD003 High-Density PCB Socket Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over contact
- Insulator Material: Liquid Crystal Polymer
- Voltage Rating: 281 VAC with TMM, 250 VAC with TMMH
- Operating Temperature Range: specified maximum temperature
- Insertion Depth: 0.787 inches (2.62 mm)
- Mounting Options: Surface mount or through-hole
- Number of Positions: 5 minimum, up to 28 positions
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes, for -D & -D options
- Maximum Cydess: 4.0 mm with -LC option
- Dimensions vary based on pin count and style
- Maximum Current per Pin: 3.8 A
- Processing: RoHS compliant, lead-free soldering
- Availability: Custom lengths and styles, non-standard options may be available
Buy the Samtec Series SQW Connectors: SQW-112-01-F-D-VS-LC
Order the high-density PCB socket today for reliable, rugged performance in electronic assemblies. Designed with cost-effectiveness in mind, it supports surface-mount or through-hole mounting, ensuring flexibility in assembly options. Featuring phosphor bronze contacts, liquid crystal polymer insulators, and optional gold or tin plating, this socket offers high current capacity, RoHS compliance, and excellent durability. Perfect for complex circuit boards requiring secure, long-lasting connections, this product ensures high performance across multiple application types, making it an essential component for modern electronic manufacturing.
Get Samtec SQW-112-01-F-D-VS-LC today—built for high durability and reliable PCB connections.
