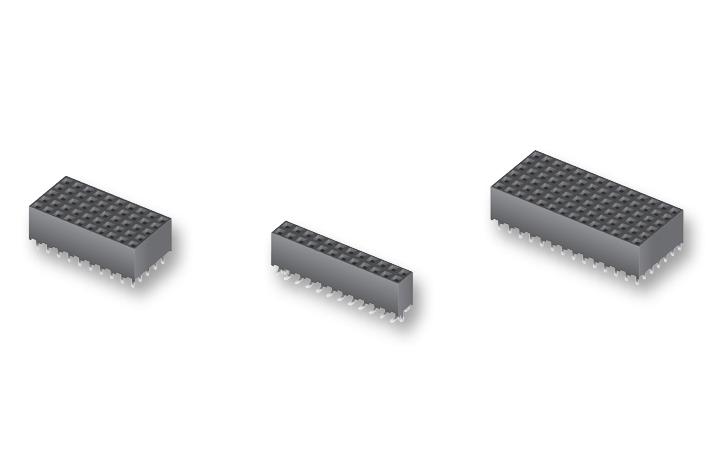

SAMTEC SQW11401LD Socket Connector
The flexible socket connector offers a 2.00 mm pitch with a high current rating of 3.8 A per pin and a voltage limit of 500 VAC. Made from black liquid crystal polymer insulator and phosphor bronze contacts with gold plating, it supports reliable connections with a maximum of 100 mating cycles. Suitable for surface mount or through-hole applications, it features low contact resistance of 10 mΩ, operates within -55°C to +125°C, and is RoHS compliant. Its compact design enables easy insertion and withdrawal, ensuring durability in demanding industrial conditions.
SAMTEC SQW11401LD Socket Connector Specifications:
- Pitch: 2.00 mm (.0787 inches)
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Gold
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.62 mm to 5.03 mm
- Wipe: 0.015 inches
- Number of Positions: 4 to 6 (varies by model)
- Mounting: Surface Mount or Through-hole
- RoHS Compliant: Yes
- Durability: Up to 100 mating cycles
- Lead-Free: Yes
Buy the Samtec SQW11401LD – Reliable Connector for Industrial Applications
Enhance your electronic assembly with the high-quality socket connector designed for industrial use. Featuring a 2.00 mm pitch, this connector supports up to 3.8 A current per pin and operates across temperatures from -55°C to +125°C. Constructed with durable liquid crystal polymer and phosphor bronze contacts with gold plating, it guarantees reliable, corrosion-resistant connections through up to 100 mating cycles. Whether for PCB mounting or versatile applications, this RoHS-compliant connector is an excellent choice for ensuring efficiency and durability in your electronic systems.
Order your Samtec Series SQW11401LD connector today and ensure dependable, high-performance connections for demanding industrial projects.
Frequently Asked Questions
Where can I buy SAMTEC SQW11401LD?
You can click on the BUY or RFQ button to purchase SQW11401LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW11401LD?
You can download the SQW11401LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW11401LD?
SAMTEC
