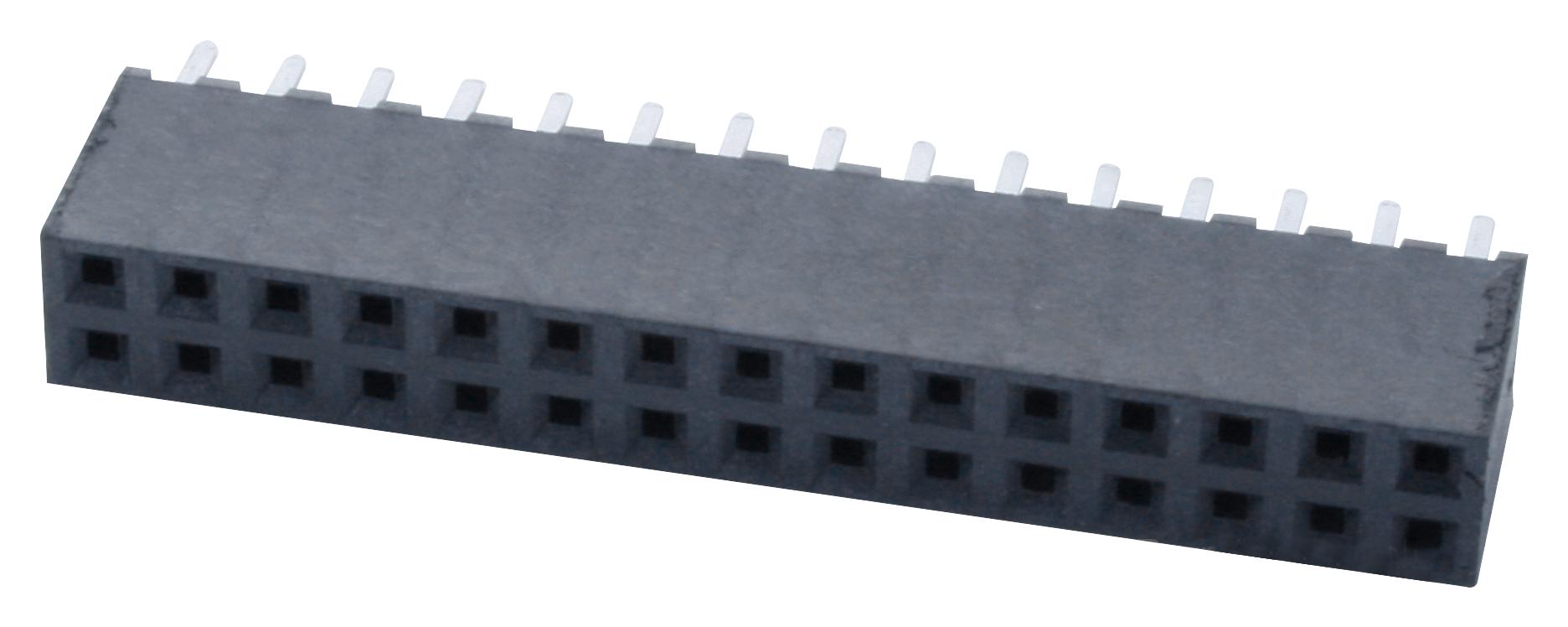

SAMTEC SQW11501LD High-Density Connector
The SQW11501LD is a versatile connector designed with a black liquid crystal polymer insulator and phosphor bronze contacts, offering reliable performance in PCB applications. Equipped with tin or gold plating over 50 microns of nickel, it supports a current rating of 3.8 A per pin and a voltage of 500 VAC when mated with compatible TMM or TMMH connectors. Its operating temperature range is from -55°C to +125°C, with low contact resistance of 10 milliohms. Suitable for high-cycle applications, it withstands up to 100 insertion cycles with gold plating. RoHS compliant, it is available in surface mount or through-hole configurations, providing flexible options for various manufacturing needs.
SAMTEC SQW11501LD High-Density Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating Options: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.103" to 0.198"
- Insertion Force: 1.8 oz (0.50 N) average
- Withdrawal Force: 1.0 oz (0.28 N) average
- Maximum Cycles: 100 with 10u" (0.25 μm) Au
- RoHS Compliant: Yes
- Processing: Lead-Free Solderrable, compatible with -D & -D-VS versions
- Mounting Options: Surface Mount or Through-hole
- Dimensions and spacing vary with configuration, typically 2.00 mm pitch and multiple row options
- Certifications: See manufacturer website for complete recognition scopes
- Compatibility: Designed to mate with specific connector series listed
