SAMTEC SQW11801LD009 High-Density Connector
The SQW series is a versatile high-density connector range designed for precise PCB connections, featuring a 2.00 mm pitch, robust phosphor bronze contacts, and available in multiple rows. Made from black liquid crystal polymer insulators and plated with tin or gold over nickel, these connectors support current ratings up to 3.8 A per pin and voltage ratings of 281 VAC. They are RoHS compliant, operate within -55°C to +125°C, and are suitable for surface mount or through-hole applications with various lengths and options for PCB layout integration, including wave solderability and lead-free compatibility.
SAMTEC SQW11801LD009 High-Density Connector Specifications:
- Pitch: 2.00 mm (.0787 inch)
- Contact Material: Phosphor Bronze
- Insulator Material: Black Liquid Crystal Polymer
- Plating: Sn or Au over 50 p" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 281 VAC with TMM; 250 VAC with TMMH
- Operating Temperature Range: -55°C to +125°C
- Insertion Depth: 2.62 mm to 5.03 mm (0.103 inch to 0.198 inch) with 0.38 mm (.015 inch) wipe
- RoHS Compliant: Yes
- Lead-Free Solderable: Yes (-D & -D-VS options)
- Number of Rows: 2 to 6
- Mounting Options: Surface mount or through-hole
- Mechanical Cycles: 100 with 10 p" Au
- Standards: RoHS compliant, suitable for wave soldering (-Q, -5, -6)
- Dimensions and Lengths: Variable; includes options for PCB layout, lengths, and number of positions

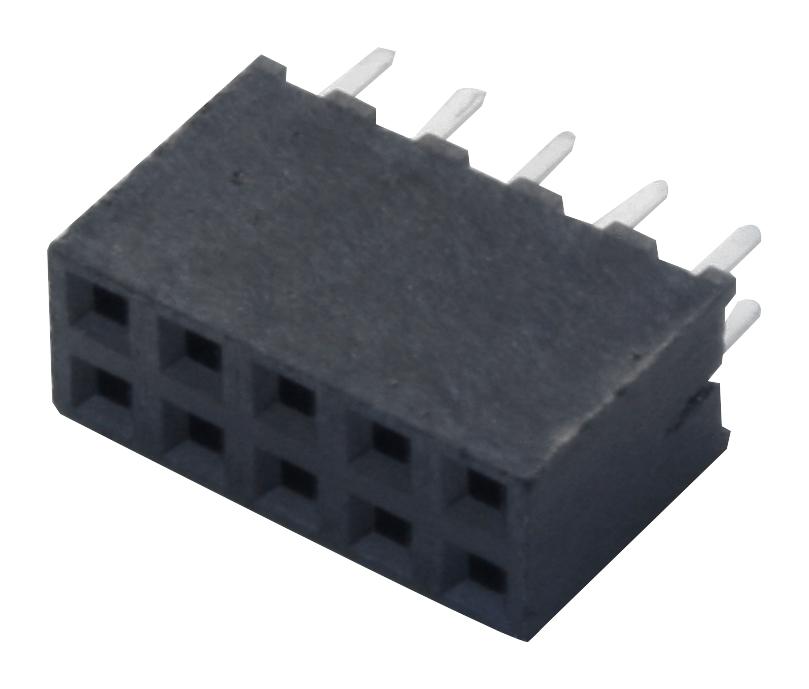

Buy the Buy Samtec SQW Series Connector Part Number SQW11801LD009 Online
Purchase the Samtec SQW series connector now for high-density PCB applications, featuring 2.00 mm pitch, phosphor bronze contacts, and RoHS compliance. Designed for surface mount or through-hole mounting, these connectors support current up to 3.8 A per pin with a voltage rating of 281 VAC. Their operating temperature range from -55°C to +125°C and durability for 100 insertion cycles ensure reliable performance. Choose from various lengths and options tailored for your specific PCB layout. Buy online today for quality and efficiency.
Buy Samtec SQW series connector with high-density 2.00 mm pitch and robust phosphor bronze contacts now to ensure reliable PCB connections and versatile mounting options.
