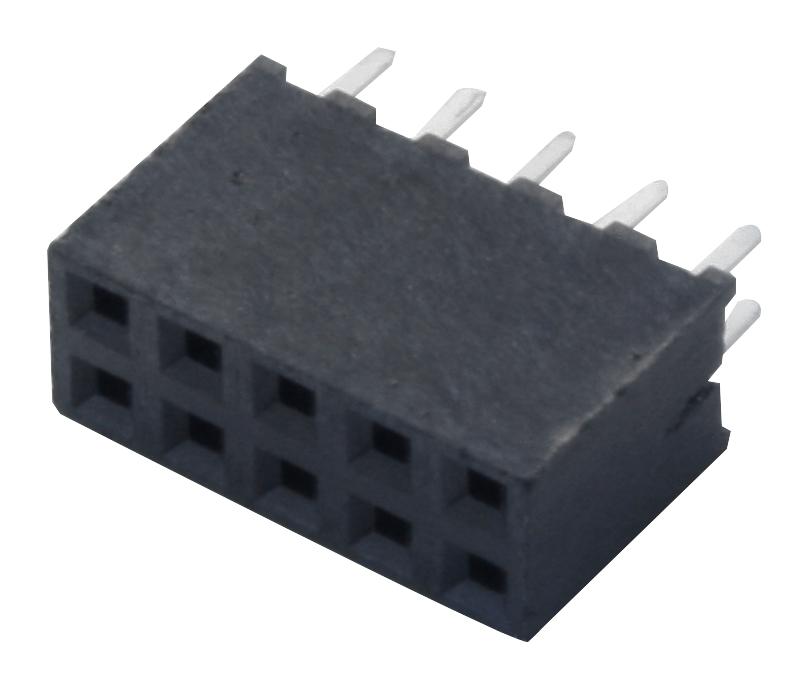

SAMTEC SQW12001FD001 Rugged Socket
The SQW series is a cost-effective, rugged socket solution designed for reliable PCB connections. Featuring a choice of surface mount or through-hole options, these sockets are constructed from black liquid crystal polymer with phosphor bronze contacts, plated with Sn or Au. They support high current capacity of up to 3.8 A per pin, operating within a temperature range of -55°C to +105°C. Suitable for various application needs, these sockets offer RoHS compliance, different pin counts, and optional configurations for flexibility and durability in demanding electronic assemblies.
SAMTEC SQW12001FD001 Rugged Socket Specifications:
- Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au
- Operating Temperature Range: -55°C to +105°C
- Current Rating: 3.8 A per pin
- Voltage Rating: 281 VAC with TMM, 250 VAC with TMMH
- Insertion Depth: 0.787 inches (2.62 mm)
- Pitch: 0.103 inches (5.03 mm)
- Number of Positions: 5 minimum, adjustable depending on model
- RoHS Compliant: Yes
- Processing: Surface mount or through-hole, lead-free solderable
- Certifications: RoHS
Buy the Buy Samtec Cost-Effective Rugged Sockets Part Number SQW12001FD001 Online
Discover the durability and high performance of the Rugged Socket designed for reliable PCB connections. Featuring options for surface mount or through-hole mounting, these sockets support up to 3.8 A per pin and operate within -55°C to +105°C temperature range. Made from black liquid crystal polymer with phosphor bronze contacts, plated with Sn or Au for corrosion resistance. Ideal for various electronic applications, these RoHS-compliant sockets ensure secure, long-lasting connections in critical systems, providing excellent value for demanding manufacturing needs.
Buy Samtec SQW12001FD001 now and experience unmatched reliability and performance with rugged socket solutions for demanding electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SQW12001FD001?
You can click on the BUY or RFQ button to purchase SQW12001FD001 from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW12001FD001?
You can download the SQW12001FD001 datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW12001FD001?
SAMTEC
