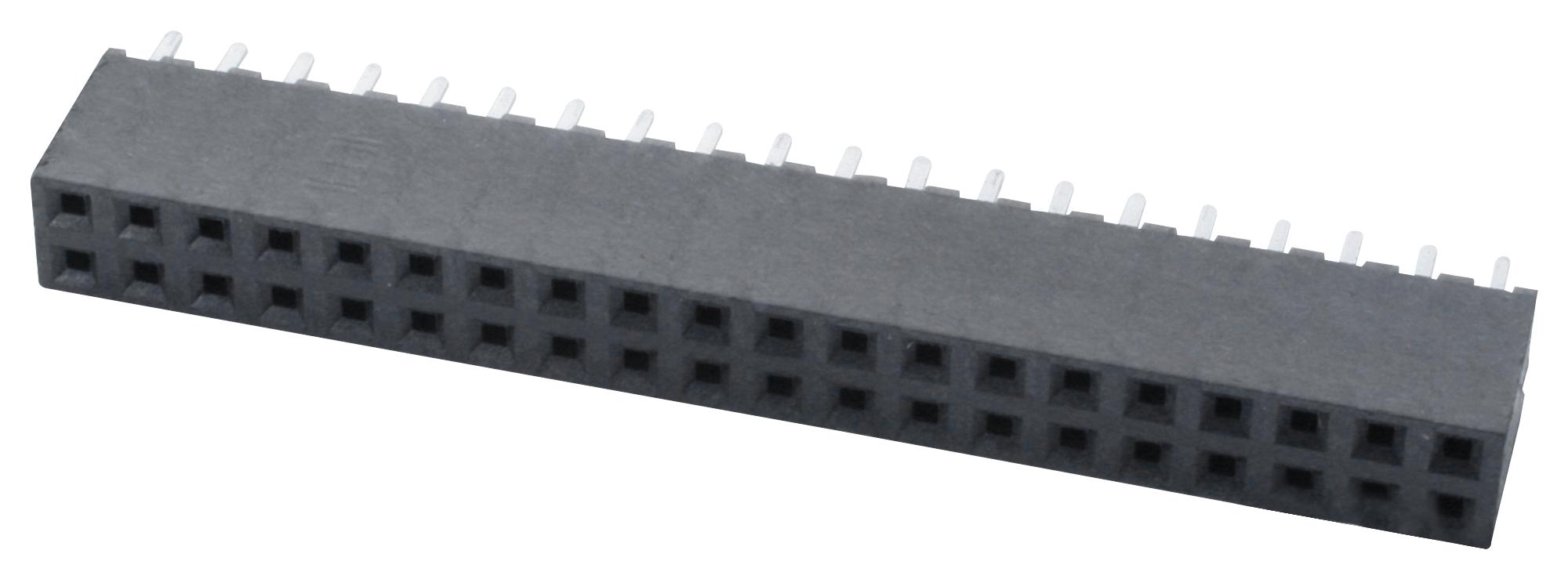

SAMTEC SQW12001LD Socket connector
The SQW12001LD is a high-quality socket connector designed for reliable PCB connections in electronic assemblies. Featuring black liquid crystal polymer insulators and phosphor bronze contacts plated with Sn or Au over 50u
SAMTEC SQW12001LD Socket connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.00 mm to 5.03 mm
- Insertion Force: 1.8 oz (0.50 N) average
- Withdrawal Force: 1.0 oz (0.28 N) average
- Max Cycles: 100 with 0.25 μm Au
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable
- MT Lead Coplanarity: 0.15 mm max
- Compatibility: Suitable for surface mount or through-hole PCB assembly
Buy the Samtec Series SQW PCB Socket Connector: SQW12001LD
Purchase your Samtec Series SQW socket connector SQW12001LD today from our online store for fast delivery and dependable quality. Designed for reliable PCB connections, featuring liquid crystal polymer insulators and phosphor bronze contacts with gold or tin plating. This connector supports current ratings up to 3.8 A per pin, voltage 500 VAC, operating temperatures from -55°C to +125°C, and up to 100 insertion cycles. Ideal for surface mount or through-hole applications, RoHS compliant, and easy to solder, ensuring long-lasting performance in electronic assemblies.
Order your Samtec Series SQW socket connector SQW12001LD today and ensure reliable PCB connections with excellent current capacity and RoHS compliance.
Frequently Asked Questions
Where can I buy SAMTEC SQW12001LD?
You can click on the BUY or RFQ button to purchase SQW12001LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW12001LD?
You can download the SQW12001LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW12001LD?
SAMTEC
