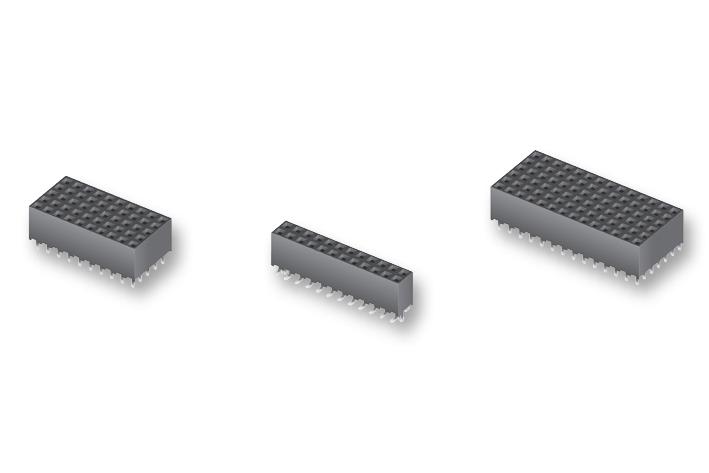

SAMTEC SQW12501LDVS Edge Connector
The SQW12501LDVS is a high-reliability, RoHS compliant edge connector designed with Black Liquid Crystal Polymer insulator and phosphor bronze contacts plated with Sn or Au over Ni. It features a current rating of 3.8 A per pin, voltage rating of 500 VAC, and an operating temperature range from -55°C to +125°C. Suitable for PCB applications, it offers an insertion depth of 0.103 to 0.198 inches with minimal insertion and withdrawal forces, supporting up to 100 cycles. Compatible with surface mount and through-hole configurations for versatile electronic and manufacturing uses.
SAMTEC SQW12501LDVS Edge Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.103" to 0.198"
- Insertion Force: 1.8 oz (0.50 N)
- Withdrawal Force: 1.0 oz (0.28 N)
- Max Cycles: 100
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable
- Coplanarity: 0.15 mm
Buy the Samtec Series SQW Edge Connector: SQW12501LDVS
Order the Samtec SQW12501LDVS edge connector online today for reliable, high-performance PCB connections. Designed with durable liquid crystal polymer insulators and phosphor bronze contacts, it provides a current capacity of 3.8A per pin and voltage of 500VAC. Suitable for surface mount or through-hole options, supporting up to 100 insertion cycles, and RoHS compliant for environmentally friendly manufacturing. Ensure seamless assembly and secure electrical connections with this versatile and high-quality connector, available for fast online purchase.
Get Samtec SQW12501LDVS today—built for precision and long-lasting durability in electronic PCB applications.
