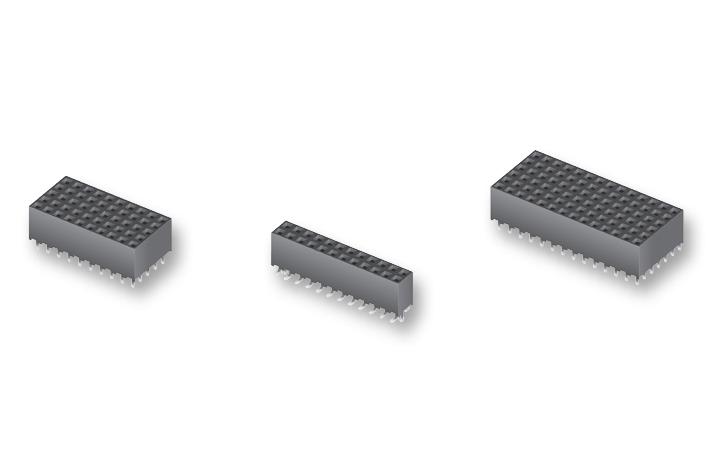

SAMTEC SQW12601LD High-Performance Connector
The SQW12601LD is a high-performance connector with a black liquid crystal polymer insulator and phosphor bronze contacts plated with Sn or Au over a 50μ
SAMTEC SQW12601LD High-Performance Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50μ" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: –55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 0.103" to 0.198"
- Wipe Insertion Force: 1.8 oz (0.50 N)
- Withdrawal Force: 1.0 oz (0.28 N)
- Max Cycles: 100 with 10μ" Au plating
- RoHS Compliant: Yes
- Processing: Lead-Free Soldérable
- MT Lead Coplanarity: 0.006" (0.15 mm)
- Choice of up to six rows
- Option for surface mount or through-hole mounting
Buy the Samtec SQW12601LD – Reliable Connector for Industrial Applications
Purchase the Samtec SQW12601LD connector online today and enjoy fast delivery of a RoHS-compliant, high-quality connector designed for demanding industrial electronics. With options for multiple rows, surface mount or through-hole mounting, and gold plating, this connector guarantees reliable, durable connections in various applications. Its robust construction, operating temperature range from –55°C to +125°C, and 100-cycle durability make it ideal for PCB assemblies, communication equipment, and automation systems. Buy now to secure a proven, professional connection component for your projects.
Order your Samtec Series SQW12601LD connector today and ensure your industrial electronics projects benefit from dependable, RoHS-compliant connection solutions.
Frequently Asked Questions
Where can I buy SAMTEC SQW12601LD?
You can click on the BUY or RFQ button to purchase SQW12601LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW12601LD?
You can download the SQW12601LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW12601LD?
SAMTEC
