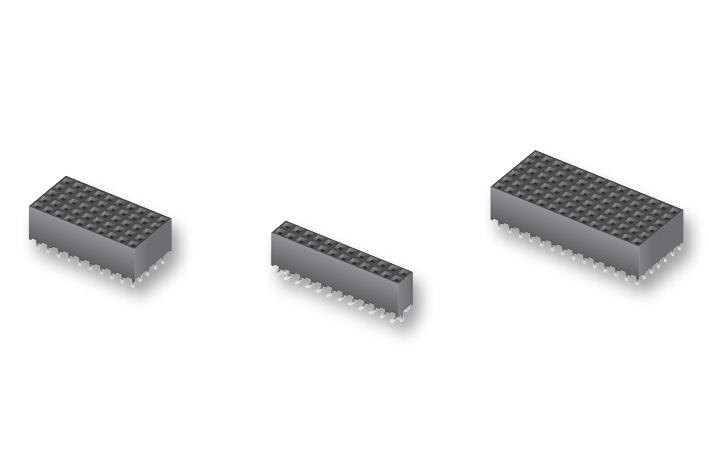

SAMTEC SQW12601LDVS High-Current Electronic Connector
The SQW12601LDVS is a versatile electronic connector featuring a black liquid crystal polymer insulator and phosphor bronze contacts plated with Sn or Au over Ni. It supports a current rating of 3.8 A per pin and a voltage rating of 500 VAC when mated with TMM or TMMH, making it suitable for high-current and high-voltage applications. Its operating temperature ranges from -55°C to +125°C. The connector is RoHS compliant, with an insertion depth of approximately 5.03 mm, and is designed for 100 mating cycles with Au plating. It offers multiple configurations including surface-mount or through-hole mounting options, with various row and position choices for flexible integration into complex electronic systems.
SAMTEC SQW12601LDVS High-Current Electronic Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 5.03 mm (0.198")
- Wipe: 0.38 mm (0.015")
- Maximum Cycles: 100 with 10u" Au
- RoHS Compliant: Yes
- Processing: Lead-Free Soldersable
- MT Lead Coplanarity: 0.15 mm (0.006")
- Mounting Options: Surface Mount and Through-Hole
- Number of Rows: Choice of 2 to 6
- Positions per Row: 2.00 mm pitch, various configurations
- Operating Conditions: -55°C to +125°C
Buy the Samtec Series SQW High-Current Connector: SQW12601LDVS
Enhance your electronic projects with the high-current connector offering robust performance, versatile mounting options, and RoHS compliance. The SQW12601LDVS features a liquid crystal polymer insulator and phosphor bronze contacts with gold or tin plating, ideal for demanding applications requiring up to 3.8 A per pin and 500 VAC voltage rating. Its broad range of configurations, including multiple rows and mounting styles, ensures perfect integration into complex systems. Reliable for up to 100 mating cycles, this connector combines durability with flexible design, making it the smart choice for engineers seeking quality and longevity.
Order your Samtec Series SQW 12601LDVS high-current connector today and ensure reliable electrical performance in your demanding electronic assemblies.
