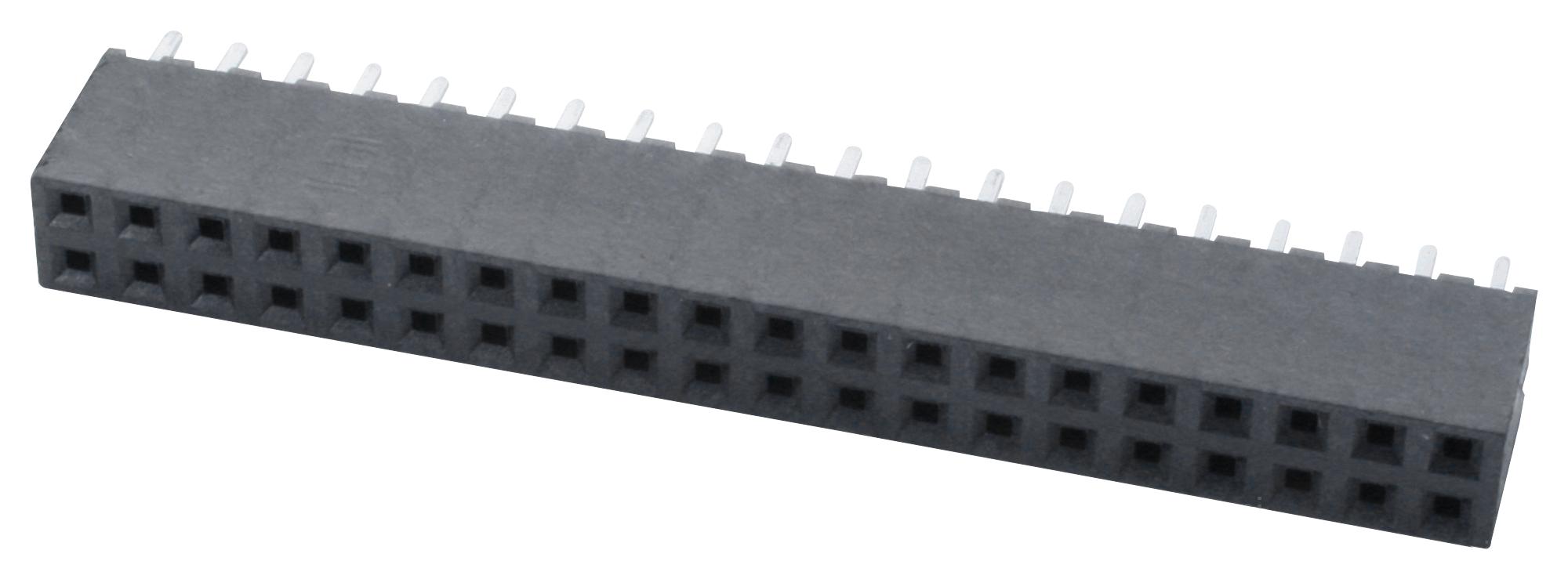

SAMTEC SQW13301FD Rugged Connector
The SQW series connectors are cost-effective, rugged sockets suitable for PCB applications, offering options from two to six rows with surface mount or through-hole configurations. Made with phosphor bronze contacts and liquid crystal polymer insulators, these connectors support current ratings up to 3.8 A per pin and voltage ratings of 281 VAC mated with TMM options. They operate within temperature ranges from -55°C to +105°C, ensuring durability in demanding environments. RoHS compliant, these connectors feature gold or tin plating for enhanced conductivity and corrosion resistance, with various contact configurations and optional PCB layout specifications for flexibility.
SAMTEC SQW13301FD Rugged Connector Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over contact
- Operating Temp Range: -55°C to +105°C
- Voltage Rating: 281 VAC mated with TMM; 250 VAC mated with TMMH
- Insertion Depth: 0.787 inches (2.62 mm)
- Maximum Current: 3.8 A per pin
- Number of Positions: Minimum 5, up to 28 or more
- Board Thickness Tolerance: 0.10 mm (0.004 inches) max, 0.15 mm (0.006 inches) max for larger arrays
- RoHS Compliant: Yes
- Processing: Lead-Free Solderable, surface mount or through-hole options, compatible with 10 micron gold plating on contact
- Series: SQW-112-01-F-D-VS-LC and variants
- Process Compatibility: RoHS compliant, lead-free soldering, various PCB layout options
- Design: Rugged, cost-effective, multiple row options, with optional surface mounting or through-hole configurations
Buy the Buy Samtec SQW Series Cost-effective Rugged Connectors Part Number SQW13301FD Online
Discover the reliable, cost-effective rugged connector designed for demanding PCB applications. Featuring multiple row configurations, corrosion-resistant gold or tin plating, and RoHS compliance, these connectors are ideal for various electronic projects. They support high current ratings up to 3.8 A per pin and operate safely within -55°C to +105°C. Whether for surface mount or through-hole assembly, these connectors offer flexible PCB layouts, durability, and easy soldering, making them the perfect choice for engineers seeking quality and value in electronic components.
Order your Samtec Series SQW13301FD rugged connector today and ensure reliable, high-performance PCB connections with versatile options and RoHS compliance.
