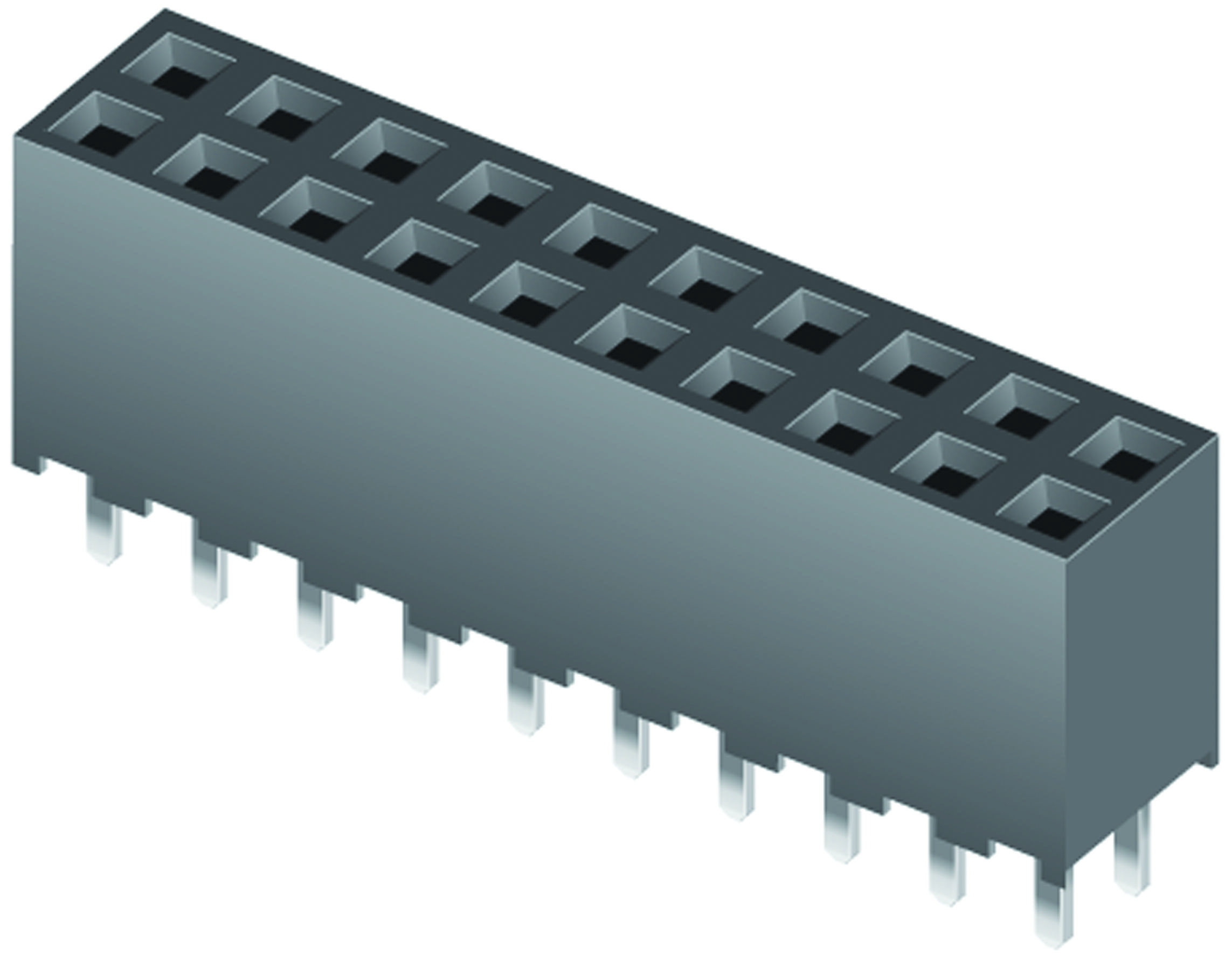

SAMTEC SQW14001LD PCB Connector
The SQW series features high-performance, liquid crystal polymer insulators and phosphor bronze contacts, offering a current rating of 3.8 A per pin. With a voltage rating of 500 VAC and operating temperature from -55°C to +125°C, these connectors are RoHS compliant and designed for reliable PCB connections. They support up to 100 cycles with gold plating options and are suitable for surface-mount or through-hole applications. The compact design ensures easy insertion and withdrawal forces, making them ideal for demanding electronic and industrial applications.
SAMTEC SQW14001LD PCB Connector Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over 50u" Ni
- Current Rating: 3.8 A per pin
- Voltage Rating: 500 VAC
- Operating Temp Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Insertion Depth: 2.00 mm (.0787") to 5.03 mm (.198")
- Wipe Length: 0.38 mm (.015")
- Insertion Force: 1.8 oz (0.50 N)
- Withdrawal Force: 1.0 oz (0.28 N)
- Max Cycles: 100 with 10μ
Buy the Samtec SQW14001LD – Reliable PCB Connectors for Industrial Applications
Experience high reliability and robust performance with the PCB connector featuring liquid crystal polymer insulation and phosphor bronze contacts. Designed for versatile applications, it supports up to 100 insertion cycles with gold or tin plating options for enhanced durability. Compact and easy to install, these connectors are ideal for demanding industrial and electronic systems requiring secure, efficient connections. Buy online now to ensure quality, reliability, and performance for your projects.
Get Samtec SQW14001LD today—built for precision and long-lasting durability in electronic and industrial assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SQW14001LD?
You can click on the BUY or RFQ button to purchase SQW14001LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW14001LD?
You can download the SQW14001LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW14001LD?
SAMTEC
