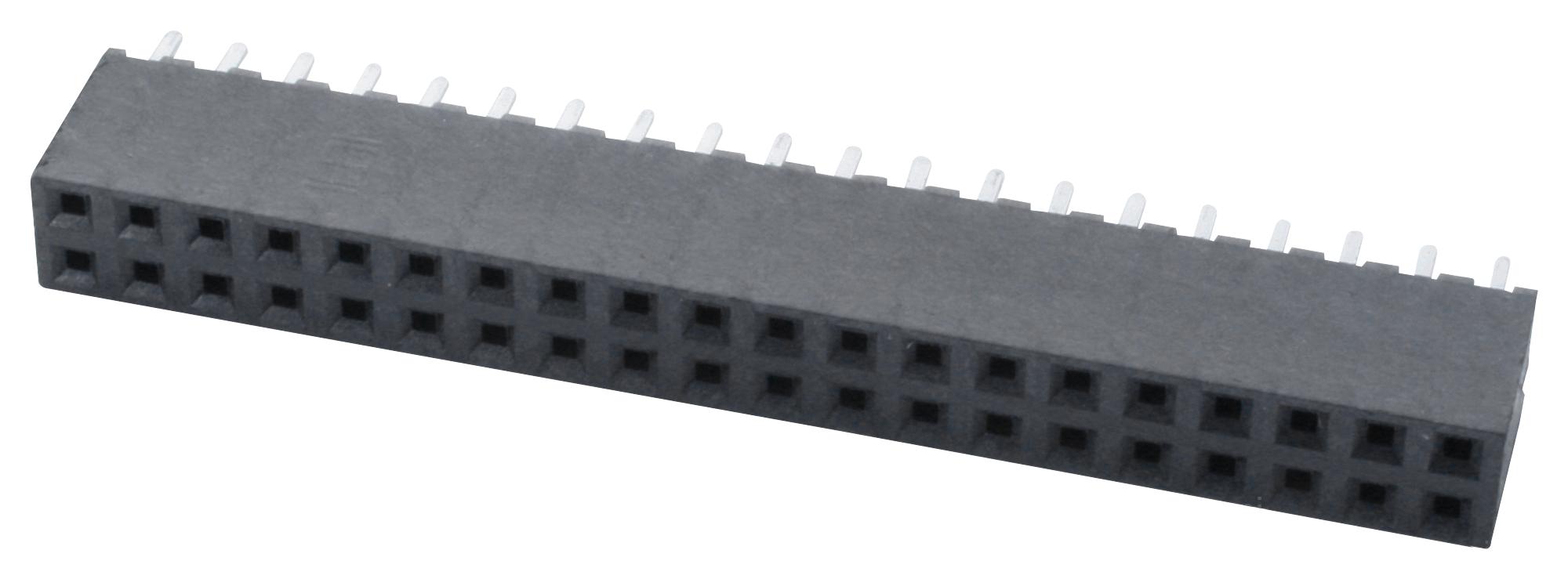

SAMTEC SQW15001FMD Rugged Socket
The rugged, cost-effective socket offers a choice of configurations with two to six rows, suitable for PCB mounting and high-current applications. Crafted with phosphor bronze contacts and liquid crystal polymer insulators, it features Sn or Au over plating for reliability. Operating at voltages up to 281 VAC, it supports surface mount or through-hole mounting, with RoHS compliance. The socket's insertion depth is 0.787 inches, with options for match height and terminal configuration. Designed for easy soldering, it is limited to lead-free processes and provides a secure, durable connection for industrial system integrations.
SAMTEC SQW15001FMD Rugged Socket Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over
- Operating Voltage: 281 VAC mated with TMM; 250 VAC with TMMH
- Operating Temp Range: Not specified
- Insertion Depth: 0.787 inches (2.62 mm)
- Material: Liquid Crystal Polymer
- RoHS Compliant: Yes
- Mounting Options: Surface mount or through-hole
- Contact Current: 3.8 A per pin
- Number of Positions: 5 minimum, up to 28
- Pitch Options: 0.049 inches (1.25 mm), 0.0787 inches (2.00 mm)
- Processing: RoHS compliant, lead-free solderable
- Certifications: Not specified
Buy the Samtec SQW15001FMD – Reliable Rugged Sockets for Industrial Applications
Purchase the rugged, cost-effective socket online today and enhance your industrial projects with high-current, versatile mounting options. This socket features phosphor bronze contacts and liquid crystal polymer insulators for superior performance. With RoHS compliance and surface mount or through-hole options, it supports voltages up to 281 VAC, ensuring safe and reliable connections in demanding environments. Its compact insertion depth and optional configurations make it ideal for complex PCB assemblies. Buy now to ensure your industrial systems operate efficiently with trusted, durable sockets.
Buy Samtec SQW15001FMD now and experience unmatched reliability and durable contact connections for industrial system installations.
Frequently Asked Questions
Where can I buy SAMTEC SQW15001FMD?
You can click on the BUY or RFQ button to purchase SQW15001FMD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW15001FMD?
You can download the SQW15001FMD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW15001FMD?
SAMTEC
