SAMTEC SQW16201LD Socket Connectors
The SQW series offers cost-effective, rugged sockets available in configurations with two to six rows, suitable for PCB connections. Made from phosphor bronze contact material with optional gold or Sn plating, these connectors support operating voltage of up to 281 VAC and 250 VAC depending on the variant. They feature a liquid crystal polymer insulator, a 0.78 inch insertion depth, and are RoHS compliant. Options include surface mount or through-hole mounting, with various pin counts, making them ideal for demanding electronic applications requiring reliable, durable interconnects. Customized configurations are available upon request.
SAMTEC SQW16201LD Socket Connectors Specifications:
- Contact Material: Phosphor Bronze
- Plating: Sn or Au over Fe
- Insulator Material: Liquid Crystal Polymer
- Voltage Rating: 281 VAC mated with TMM; 250 VAC mated with TMMH
- Operating Temperature Range: Not specified
- Insertion Depth: 0.78 inches (2.62 mm)
- Mounting Options: Surface mount or through-hole
- Pin Count Options: 5 to 28 positions minimum, customizable
- RoHS Compliant: Yes
- Process Compatibility: Lead-Free Solderable for -D & -D variants
- Dimensions: Pitch varies from 0.0787 inches (2.00 mm) upwards depending on configuration
- Part Number: SQW16201LD

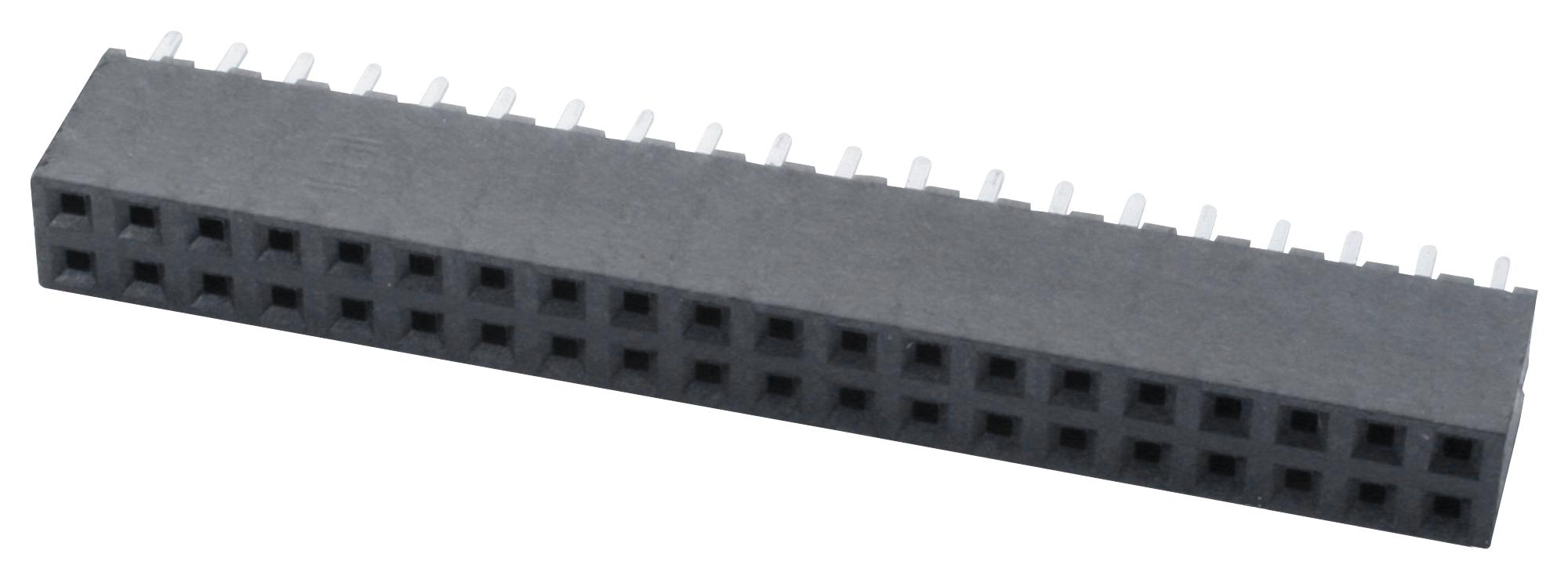

Buy the Buy Samtec SQW Series Socket Part Number SQW16201LD Online
Enhance your electronic assemblies with the reliable Samtec SQW series socket connectors, offering high voltage support, multiple mounting options, and robust materials. Designed from phosphor bronze with optional gold or Sn plating, they provide excellent electrical performance and durability. These sockets are RoHS compliant, support lead-free soldering, and are customizable for various pin counts and configurations. Ideal for demanding PCB applications, they ensure a stable, long-lasting connection. Purchase online today to improve your project's reliability and performance with proven interconnect technology.
Order your Samtec SQW16201LD rugged socket today and ensure reliable connections for your electronic projects with durable, cost-effective interconnects.
Frequently Asked Questions
Where can I buy SAMTEC SQW16201LD?
You can click on the BUY or RFQ button to purchase SQW16201LD from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SQW16201LD?
You can download the SQW16201LD datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SQW16201LD?
SAMTEC
