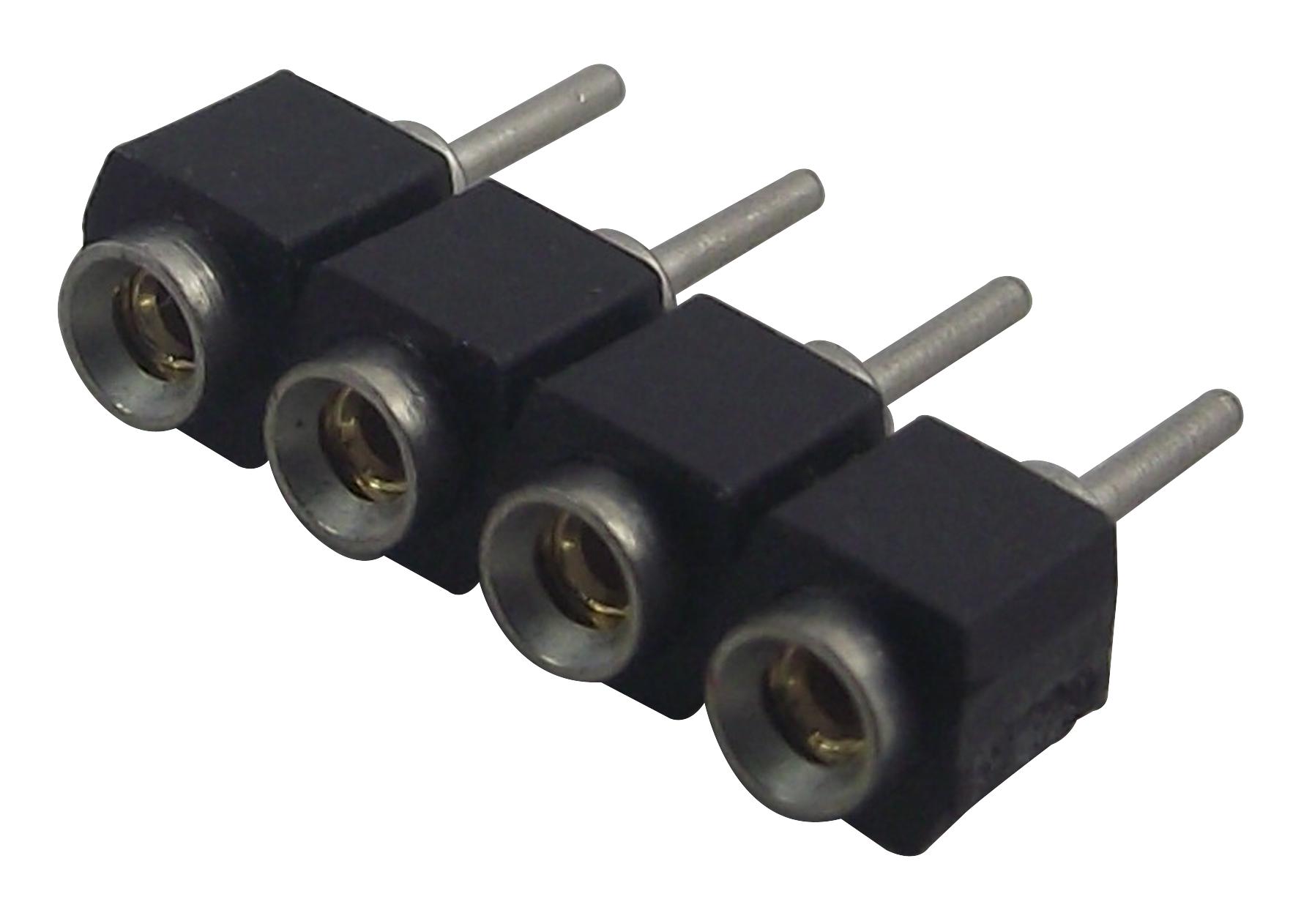

SAMTEC SS108TT2N IC Socket
The SS108TT2N is a high-reliability, low insertion force socket designed for precise performance in industrial and electronic applications. Made with durable brass shell and black liquid crystal polymer insulator material, it features gold and tin plating options for enhanced conductivity and corrosion resistance. This socket supports a temperature range from -55°C to +125°C, with contact resistance as low as 10 mΩ. Suitable for IC leads from 0.38 mm to 0.56 mm, it is engineered for easy installation, durability, and compliance with RoHS standards, making it ideal for demanding electronic projects.
SAMTEC SS108TT2N IC Socket Specifications:
- Insulator Material: Black Liquid Crystal Polymer
- Shell Material: Brass (except Styles 2 & 22 with Tin shell)
- Plating Options: 30" (0.76 μm) Gold contact, Tin shell; 10μ" (0.25 μm) Gold shell
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Lead Size Range: 0.38 mm to 0.56 mm (0.015" to 0.022" DIA)
- Insertion Force (Standard): 9 oz (2.50 N) avg., 16 oz (4.45 N) max
- Low Insertion Force: 2.5 oz (0.70 N) avg., 5.5 oz (1.53 N) max
- Withdrawal Force: 2.5 oz (0.70 N) avg., min 1.5 oz (0.42 N)
- Number of Positions: Up to 36
- RoHS Compliant: Yes
- Wave Solderable: No
- Locking Lead Option: Available (Low Insertion Force Locking Lead)
Buy the Samtec SS108TT2N – Reliable IC Socket for Industrial Applications
Purchase the Samtec SS108TT2N IC socket online today to ensure reliable, corrosion-resistant connections with low insertion force, versatile lead options, and high-temperature operation. Designed for demanding electronic and industrial applications, this socket facilitates easy installation and maintenance, backed by industry standards. Enjoy fast shipping, competitive pricing, and trusted quality from authorized distributors. Elevate your electronic projects with the durable, RoHS-compliant socket that guarantees long-lasting performance and precise connections for a variety of IC lead sizes and configurations.
Get Samtec SS108TT2N today—built for precision and long-lasting durability in electronic assembly.
Frequently Asked Questions
Where can I buy SAMTEC SS108TT2N?
You can click on the BUY or RFQ button to purchase SS108TT2N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SS108TT2N?
You can download the SS108TT2N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SS108TT2N?
SAMTEC
