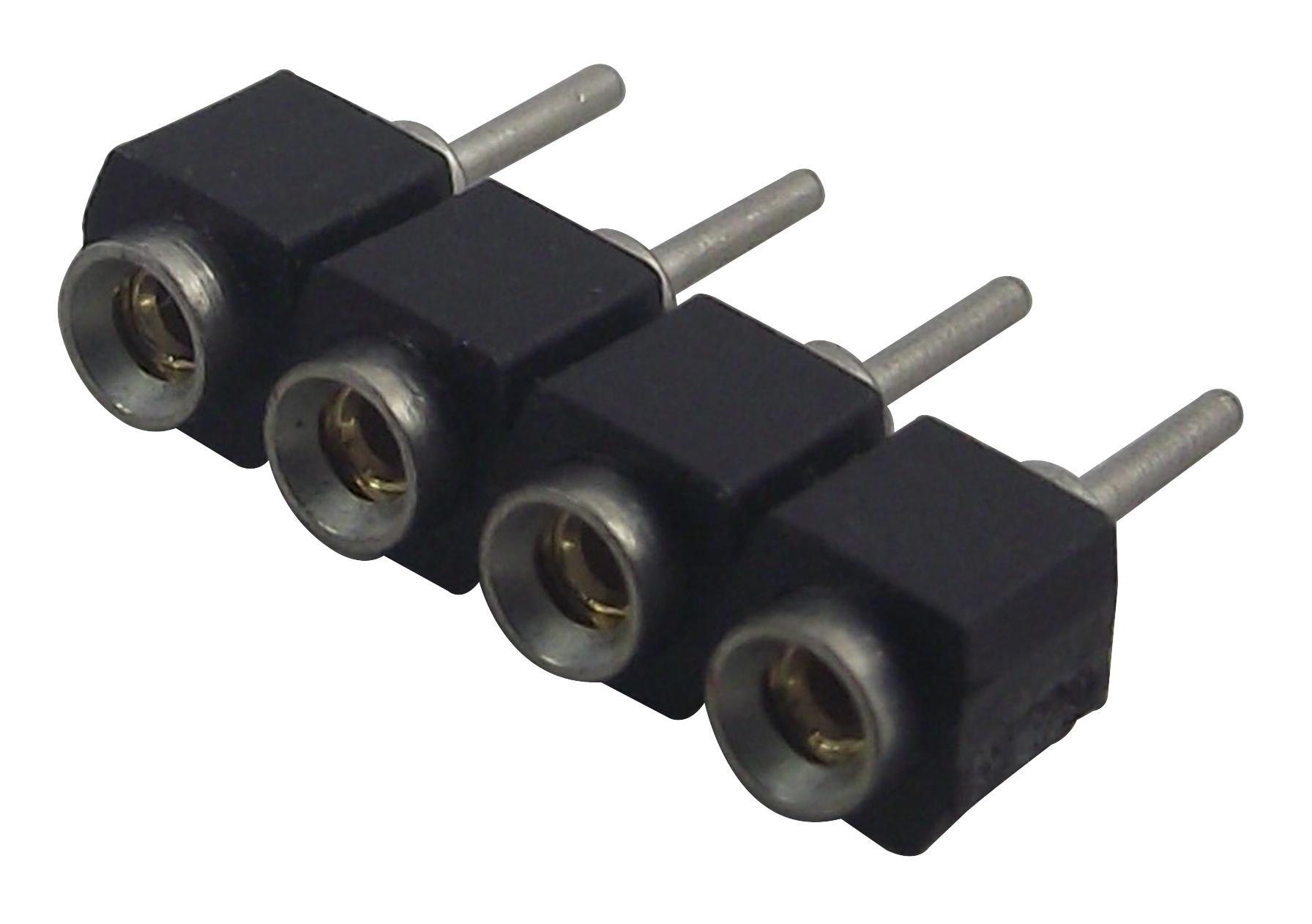

SAMTEC SS120T2N Electronic Socket
The SS120T2N is a high-quality, reliable socket designed for various industrial and electronic applications. Made with durable brass shells and BeCu contacts, it offers excellent electrical performance and resistance to high temperatures up to 125°C. The socket features gold or tin plating options, ensuring reliable connections and corrosion resistance. Its adjustable insertion and withdrawal forces provide ease of use in assembly and maintenance. Suitable for high-performance electronic equipment, the SS120T2N ensures durability, precision, and dependable contact stability in demanding environments.
SAMTEC SS120T2N Electronic Socket Specifications:
- Insulator Material: Black G.F. Polyester, Black Liquid Crystal Polymer
- Contact Material: BeCu
- Shell Material: Brass (except Style 54) or Tin shell for Style 2 & 22
- Plating Options: Au over 50p" Ni or Sn over 50p" Ni, 30" Gold shell, 10" (0.25 μm) Gold shell
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Lead Size Range: 0.38 mm to 0.56 mm (0.015" to 0.022" DIA)
- Insertion Force (Standard): 9 oz (2.50 N) average, 16 oz (4.45 N) max
- Low Insertion Force: 2.5 oz (0.70 N) average, 5.5 oz (1.53 N) max
- Withdrawal Force: 2.5 oz (0.70 N) average, 1.5 oz (0.42 N) min
- Number of Positions: 1 to 36
- Head Style: Not countersunk for Styles -5A & -05; options include RoHS, lead-free solderable, and locking leads
- RoHS Compliant: Yes
- Application: Suitable for IC sockets, industrial electronics, and high-density connections
Buy the Samtec SS120T2N – Reliable Electronic Socket for Industrial Applications
Purchase the Samtec SS120T2N online now and ensure reliable, high-performance electrical connections. Designed with durable materials and plated for corrosion resistance, this socket supports high-temperature operation up to 125°C. Its low and standard insertion and withdrawal forces facilitate easy installation and maintenance, making it ideal for high-density IC connections, industrial electronics, and demanding applications. Order now for fast delivery and experience long-lasting performance, ensuring your electronic assemblies remain secure, dependable, and efficient over time.
Get Samtec SS120T2N today—built for precision and long-lasting durability in electronic and industrial environments.
Frequently Asked Questions
Where can I buy SAMTEC SS120T2N?
You can click on the BUY or RFQ button to purchase SS120T2N from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SS120T2N?
You can download the SS120T2N datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SS120T2N?
SAMTEC
