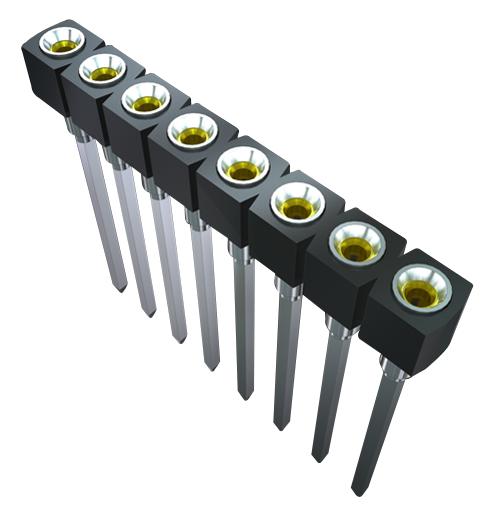

SAMTEC SS120TT1A IC Socket
This is a high-quality single-row socket designed for reliable connections in electronic assemblies, offering low insertion force options and various plating finishes suitable for RoHS compliance. It features a durable brass shell and BeCu contacts with optional gold or tin plating, ensuring excellent conductivity and corrosion resistance. The socket supports operating temperatures from -55°C to +125°C, with low contact resistance of 10 milliohms. Available in multiple styles and lead sizes, suitable for mounting ICs and other components requiring secure, robust connections in industrial and manufacturing applications.
SAMTEC SS120TT1A IC Socket Specifications:
- Insulator Material: Black G.F. Polyester, Liquid Crystal Polymer
- Contact Material: BeCu
- Shell Material: Brass (Styles 2 & 22 only)
- Plating Options: Au over 50p! Ni, Sn over 50p! Ni, Gold shell (10y"), Tin shell
- Operating Temperature Range: -55°C to +125°C
- Contact Resistance: 10 mΩ
- Lead Size Range: 0.38 mm to 0.56 mm (0.015" to 0.022" DIA)
- Insertion Force: Standard 9 oz (2.50 N) avg., Low 2.5 oz (0.70 N) avg.
- Withdrawal Force: Standard 2.5 oz (0.70 N) avg.
- Number of Positions: 1 to 36, with specific options for LIF and other configurations
- RoHS Compliant: Yes
- Solderability: Lead-Free Solderable
- Design Variants: Styles 5A, 05, 54, ESD series, Locking lead options available
Buy the Samtec Series SS120 IC Socket: SS120TT1A
Secure your electronic assemblies with the high-quality IC Socket designed for reliability and performance. Samtec's SS120TT1A offers low insertion force, durable construction, and versatile plating options including gold and tin. Operating from -55°C to +125°C, it ensures excellent conductivity and corrosion resistance. Ideal for industrial, manufacturing, and testing environments, this socket supports multiple styles and configurations for versatile application needs. Purchase online now for fast delivery and dependable connection solutions for your electronic projects.
Order your Samtec Series SS120TT1A high-temp IC socket today and ensure reliable, durable connections for your electronic projects.
Frequently Asked Questions
Where can I buy SAMTEC SS120TT1A?
You can click on the BUY or RFQ button to purchase SS120TT1A from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SS120TT1A?
You can download the SS120TT1A datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SS120TT1A?
SAMTEC
