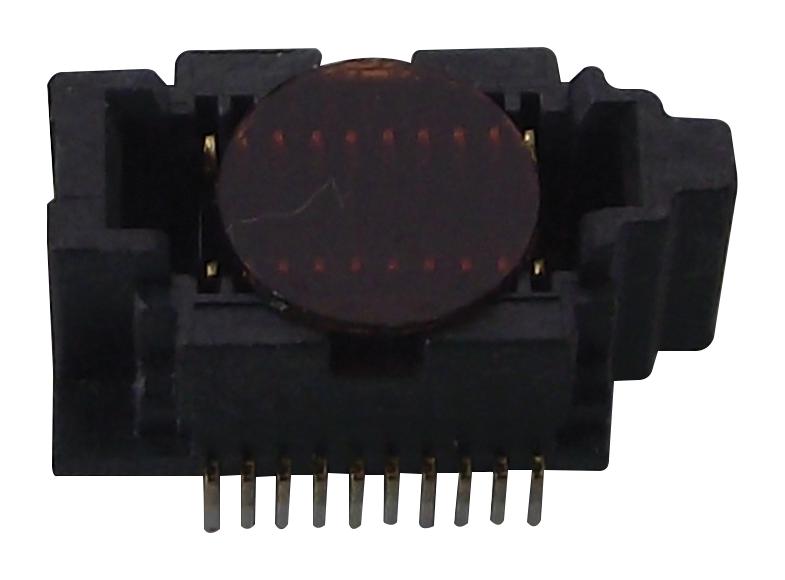

SAMTEC SS420300LDKTR Ultra-fine pitch socket
The SS4 Series ultra-fine pitch socket features a 0.4mm pitch with a black LCP insulator and phosphor bronze contact material. It supports operating temperatures from -55°C to +125°C, with a current rating of 41.6A per pin. This cost-efficient, lead-free, solderable socket ensures excellent signal integrity with high-frequency performance up to 28 Gbps. Its narrow body design saves space on the PCB, providing reliable row-to-row mating for advanced electronic assemblies, including SMT PCB layouts for high-density applications in industrial and communication equipment.
SAMTEC SS420300LDKTR Ultra-fine pitch socket Specifications:
- Pitch: 0.4mm
- Contact Material: Phosphor Bronze
- Plating: Au or Sn over 50p" Ni
- Operating Temperature Range: -55°C to +125°C
- Current Rating: 41.6 A per pin
- Stack Height: 4mm with PCB effects
- Lead Coplanarity: 0.10 mm max
- Material: Black LCP insulator
- Socket Contact Type: Beam contact design
- Insertion Loss: Rated @ 30B
- Frequency Range: Up to 28 GHz/31 Gbps
- Processing: Lead-Free, Solderable
- Dimensions: Length varies with options, typical width 3.00mm, height 3.50mm to 6.00mm
- Mounting Style: SMT
- Certifications: UL Listed
Buy the Samtec SS420300LDKTR – Reliable Ultra-Fine Pitch Socket for Industrial Applications
Order the high-performance ultra-fine pitch socket online today. Designed with a 0.4mm pitch, it provides high-speed signal integrity at frequencies up to 28 GHz. Its black LCP insulator and phosphor bronze contacts ensure durability and excellent electrical contact. Perfect for dense PCB layouts and high-frequency applications in industrial automation, communication systems, and advanced electronics. This solderable, lead-free component offers reliable mating, space-saving design, and superior performance, making it a vital part of modern electronic manufacturing and design requirements.
Get Samtec SS420300LDKTR today—built for precision and long-lasting durability in high-density electronic assemblies.
Frequently Asked Questions
Where can I buy SAMTEC SS420300LDKTR?
You can click on the BUY or RFQ button to purchase SS420300LDKTR from an authorized SAMTEC distributor.
How do I troubleshoot issues or seek technical support for part SS420300LDKTR?
You can download the SS420300LDKTR datasheet or visit the SAMTEC website for support.
Who is the manufacturer of SS420300LDKTR?
SAMTEC
